Description

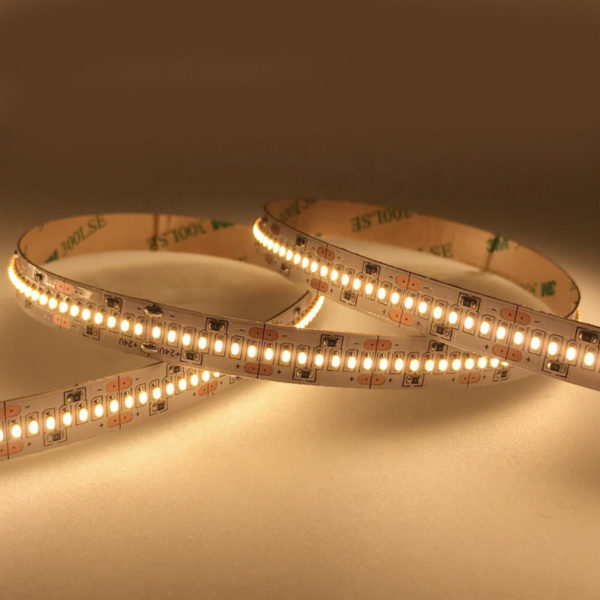

24V 2835 LED Strip UL Listed 2835 SMD LED Flexible Strip 2835 240 LED Strip
Flexible 2835 LED Strip is default 5 meters/Reel, 15cm red/black power lead wire at each end to connect power supply to be same Brightness in whole 5 meters.
These single color 2835 LED strips have only two soldering points, – (Ground) and + (positive) Flexible 2835 LED-strip with adhesive for easy mounting, the smd2835 led strip is very easy to install. You can cut the smd2835 led strip along the cutting mark to create any size you need. The power is supplied through the soldering points which can be found on the strip every cutting place
Applications: Stylish architectural lighting. Illumination of your stairs, kitchen, living room, restaurant, etc. A versatile product which allows you to create stunning lighting effects in a heartbeat!
The smd 2835 LED Strip works on 12 Volts / 24 Volts, so to connect it to a 110-230V power outlet you will need a power supply.
This LED 2835 Strip can be dimmed in combination with an LED Dimmer
Item Model
|
LL-2835
|
||||||||
LED Type
|
SMD2835
|
||||||||
LED Quantity/M
|
30
|
48
|
60
|
78
|
84
|
96
|
120
|
224
|
240
|
Wattage/M
|
7W
|
11W
|
13
|
16.8W
|
18W
|
20W
|
22W
|
24W
|
26W
|
Lumens/M
|
630
|
990
|
1170
|
1512
|
1620
|
1800
|
1980
|
2070
|
2340
|
Color Rendering Index
|
CRI70
|
||||||||
Working Voltage
|
12V
|
12V
|
24V/12V
|
12V
|
24V
|
24V
|
24V
|
24V
|
|
PCB Width
|
8mm
|
8mm
|
8mm
|
8mm
|
10mm
|
10mm
|
10mm
|
12mm
|
12mm
|
Light Color
|
Pure White 6000-6500K,
|
||||||||
Natural white 4000-4500K,
|
|||||||||
Warm White:2800-3200K
|
|||||||||
PCB Color
|
White
|
||||||||
Waterproof IP Grade
|
IP20: Non-waterproof with Adhesive 3M Tape on the back
IP65: Glue cover LEDS,with 3M Tape on the back
IP66: soft tube waterproof IP68: Soft tube+glue filled in waterproof |
||||||||
Application
|
Indoor USE : IP20/IP65
Outdoor use: IP66/IP68
|
||||||||
Product’s Warranty
|
2 Years
|
– IP20 | IP65 | IP66 | IP67 | IP68.
– Flexible and versatile LED strip lighting.
– UV and flame resistant.
– Continuous length up to 10 metres.
– Colour temperature ranges from 1800k – 20000K+.
– CRI 80+ | CRI 90+ | CRI 95+
– Ambient temperature -20°C to 45°C.
– Remote 24v constant voltage driver.
– 5w per metre SMD and Epistar versions.
– Dimmable options available.
1. Our LED use copper base, gold wire which provide good heat dispersion, long lifespa, low Luminous Decay.
2. Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.
3. We always require same bin number SMD LEDs for different production batches for the same customer.
4. We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch. Normally 5 MacAdam LED is +/-100K
5. We can produce 3 MacAdam LED Strip/tape as customer request.
