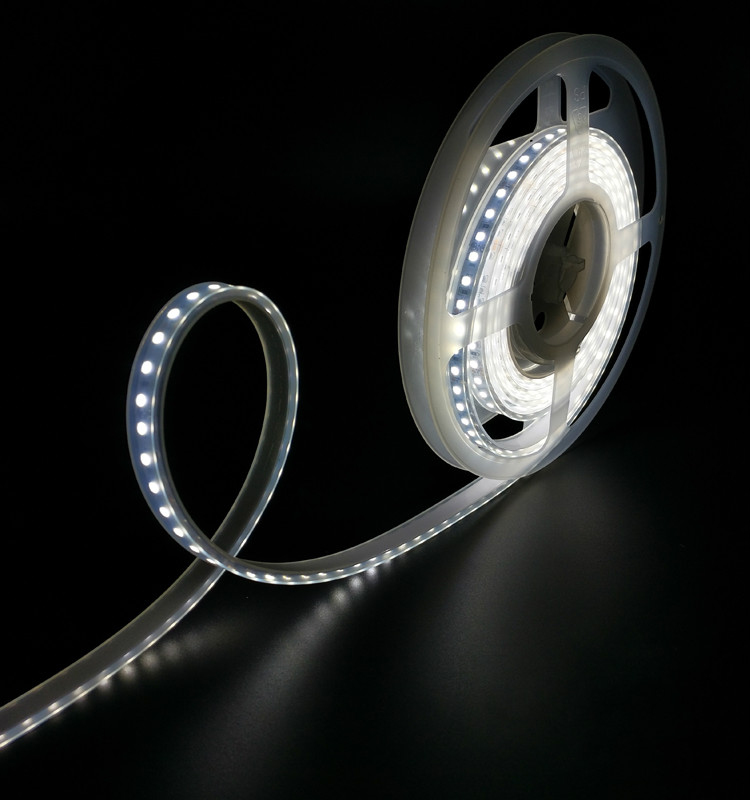

24v 5m reel 3528 led strip light 240 leds per meter single row led strip
2.Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.
3.We always require same bin number SMD LEDs for different production batches for the same customer.
4.We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch. Normally 5 MacAdam LED is +/-100k
5.We can produce 3 MacAdam LED Strip/tape as customer request.
240leds per meter 3528 Led Strip Light
|Dimmensions(mm)||5000 * 10* 2(L * W * H)|
1,About the crees,we use copper brackets which have the good functions of anti oxygen,electric conduction and heat radiation instead of the iron brackets that easily gather rust.
We use square chips (9*15) not the round which is instable and easy to die light and pure gold wire to avoid oxidation.
2,Our calender plates are thicker to conduct electricity and disspate heat easily.
3,The pure copper wire with the perfect chip is in line with international standare.
4,Our tin without aluminum be offered certifications such as CE and ROHS.
5,We use import 3M double-adhesive tape.
The following are IP rating:
IP20: Non-waterproof, available indoor.
Ip65: silicone glue or epoxy resin, can prevent the splashing water invade, available indoor.

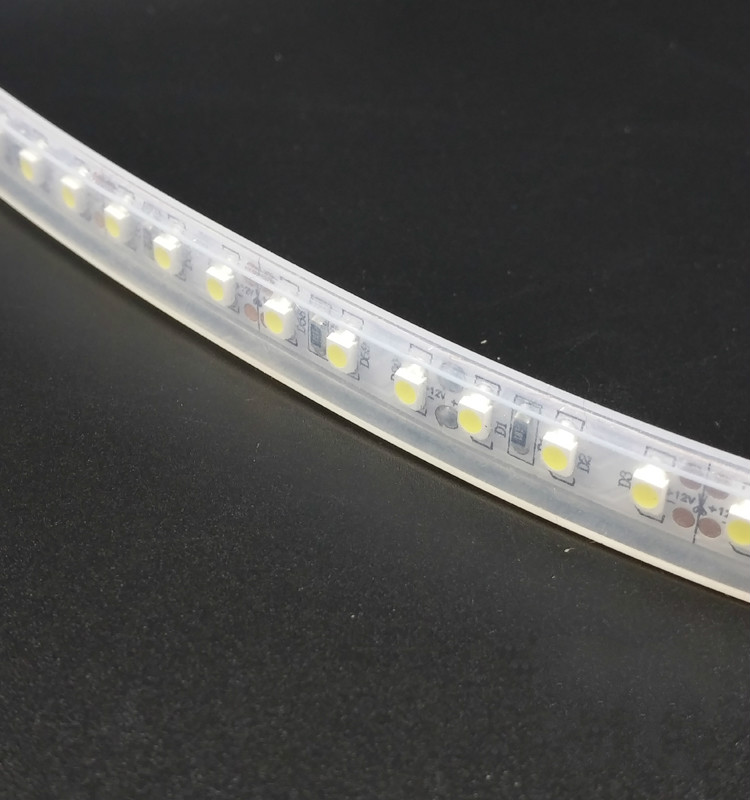

IP67: Silicone tube, hollow, can prevent the big wave water invade; available indoor and outdoor.
IP68: Silicone tube +silicone gel or silicone extrusion molding, completely prevent dust and water invade; available indoor,outdoor and water
