Description
24V UVC LED Strip Disinfection 254nm 265nm 275nm 280nm UV LED Sterilizing Strip
| LED type | 3838 SMD |
| LED Quantity | 30leds/m(Support customize) |
| Luminous Power/LED | 80mA 6-8mW |
| Best Work Distance | 1cm |
| Work Voltage | 24V |
| Wavelength | 250nm-260nm, 260nm-270nm, 270-280nm |
| Dimension | (L )5000mm * ( W) 10mm |
| PCB Material | Copper |
| IP rating | IP20, Also can customize IP65 |
Product Description
UVC 275nm Flexible LED Strip Light produced by SMD3838 30leds/m and 60leds/m; DCDC24V characteristics with high durability and long lifetime, even under difficult conditions. These flexible LED Strip Light can be achieved IP20, IP65 IP Rating, which can be used in both indoor and outdoor applications.
Warnings and Handling Instrutions
UVC-LEDs is a invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for short periods. DO NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate ” UVC ” Safety protection for eyes and skin. If you incorporate a UVC-LED into a product, be sure to provide WARNING labels.
275nm UVC LED Lighting Lights are often used in below applications:
1. Antibacterial Project
2. Medical Treatment
3. Wateproof Purification
4. Air Purification
5. Disinfect Water
6. Kill virus and bacterias
7. Destroy harmful micro-organism
8. Surface Sterlization
275nm LED Strip
CAUTION:
UVC LED is strong and powerful. It should be used out of sight. Do not lighting on them for a long time.
Otherwise, it may burn eye cornea . Also ,UV-C could damage gel, PC and linen.
- UV LED: Using UltraViolet C radiation LED 3535 as light source, short-wave at 265~278nm, hard UV, germicidal light.Taiwan imported UVC LED chip, 10,000 hours lifespan.If you prefer LG chip, we can supply also. LG is a leader in UVC chip production.
- Safe voltage:12pcs LED per meter, low voltage 12V/24V input for humen safety.
- Dimmable:Support PWM, 0/1-10V, DALI and other dimming ways.
- Flexible. Slim, compact and flexible PCB strip. Applicable for bendable or angled patterns, or in continuous rows.
- Easy Installation:Install it with adhesive tape light on the back.
- Application:
Sterilize baby products,The medical sterilization,Water sterilization,Food is antibacterial and keeps fresh,
Household products surface sterilization,Aquatic water purification sterilization,Home cleaning robot sterilizes,Air filtration sterilization,Toothbrush disinfection,Money detector,Phototherapy,Detection.
Knowledge about UVC LED , the wavelength ranges from 200nm to 280nm
While UVB radiation is widely recognized for its harmful effects on human skin and links to skin cancer, each of the UV bands (UVA, UVB and UVC) create different risks for humans.
Different wavelength UVA VS UVB VS UVC
UVA: from 320nm to 400nm
UVB: from 290nm to 320nm
UVC: from 200nm to 280nm
Germicidal UV LED strip lights 270-280nm,customizable ultraviolet 3535 flexible or rigid light strip
| Item | UV3838 LED Strip |
| LED Type | 3838 |
| Rated lifetime of LED (h) | 50,000 |
| LED Quantity (units/m) | 30 |
| Input Voltage (V) | 24V DC |
| Frequency (Hz) | / |
| Driver Mode | Constant voltage |
| Certification | CE,RoHS |
| Color Temperature (K) | UVC 270-280nm |
| Dimmable | Support PWM, 0/1-10V, DALI,and others. |
| Max.Wattage | 5-8mw per led |
| Min. Cutting Unit (LEDs) | 1 LEDs |
| Min. Cutting Length(mm) | 166.67mm |
| Protection Rating | IP20 |
| Ambient Temp. | -20℃ to +40℃ ( 25℃-best fit ) |
| PCB | 10mm wide, 2oz |
| Length per Roll | 5m |
| Package Quantity | 5m strip + ESD bag +label |
| Package G.W.(kg) | 6.8 |
| CBM | 0.017 |
| Warranty (years) | 2 |
UVA is harmful to skin, UVB is risk to skin cancer, UVC can cause serious to skin, but we can not be touched by natural ultraviolet light, only by artificial ultraviolet light.
UVC radiation refers to wavelengths shorter than 280 nm. These wavelengths are entirely absorbed by our atmosphere and no natural UVC radiation reaches the surface of the earth.
UVC Effect on Skin
Acute (short-term) effects include redness or ulceration of the skin. At high levels of exposure, these burns can be serious. For chronic (long-term) exposures, there is also a cumulative risk, which depends on the amount of exposure during your lifetime. The long-term risk for large cumulative exposure includes premature aging of the skin and skin cancer.
UVC can damage the skin cell’s DNA structure ,rendering them incapable of reproduction.
UVC LED Strip Light
UVC LED Strip
254nm LED Strip

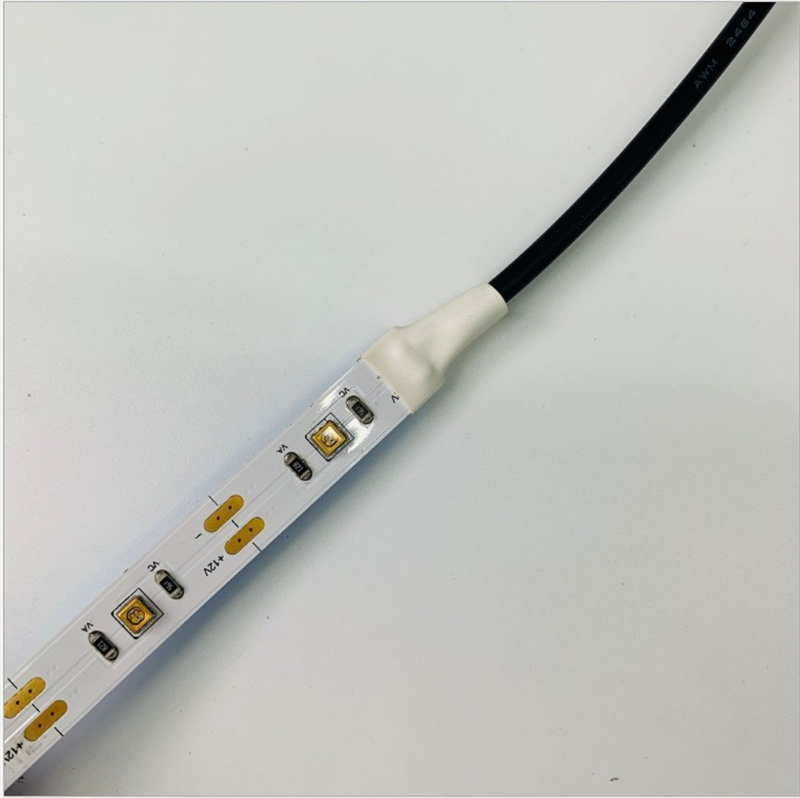

270nm LED Strip
