5mm Super Thin COB Strip No Dot COB LED Strip Narrow PCB Board 12V 24V

Item: COB LED Strip

Power: 10w/m

LED Quantity: 384leds

Description

5mm Super Thin COB Strip No Dot COB LED Strip Narrow PCB Board 12V 24V

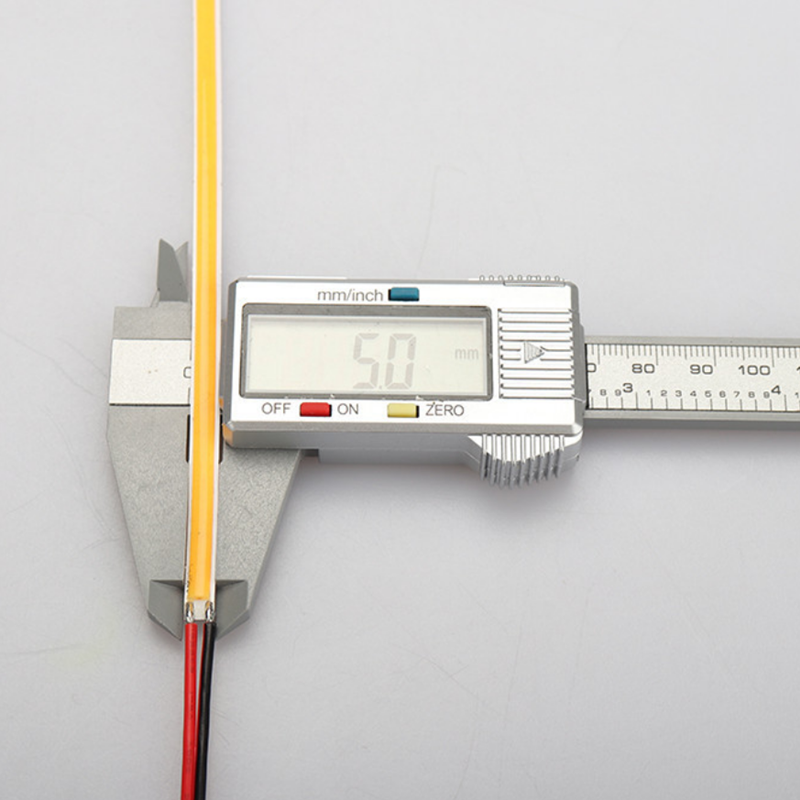

5mm super thin cob strip

5mm super thin cob strip

Feature
♦ Flip-chip
♦ Sensing Beam angle:180 degree
♦ High density LED,no light spot
♦ Extremely flexible
♦ Homogeneous illumination
♦ New tech against traditional strips
♦ 2 years warranty.

Compared to the regular SMD(Surface Mounted Devices) LED Strip Lights,the highlights of our COB(Chip on Board) LED Strip Lights are as follows:

  • – Brighter and more uniform light without spots
  • – Lower power consumption for energy saving,higher light efficiency(110LM/W)
  • – Higher Color Rendering Index(CRI 90+) benefits reflection of true color
  • – Soft light,no glare,no harm to your eyes.Safe for children and pets
Model NO BT-FCOB4801
Input: 12V DC 24V DC
Power Consumption: 10W/M
LED Chip Brand COB
Lumen output: 800lm/M
Lumen maintenance: 70% at 30000 hours, no flickering
Color Temperature: Color Rendering index: ≥80
LED Color Temperature: Warm White 2800-3300 /Nature White 4000-4500K/Cool White 6000-6500K
LED Color Optional: CW /NW/WW
Surface Color: White
Beam Angle: 180°
Operation Temperature: -40~50 degrees Celsius
Protection Rating: Avliable for IP20/IP65/IP67/IP68
Material: Copper PCB
Installation: Recessed mounted/Surface mounted
Certificate: CE, RoHS
Warranty 2 Years
12v cob led strip

12v cob led strip

cob rgb led strip

cob rgb led strip

led cob strip flexible

led cob strip flexible

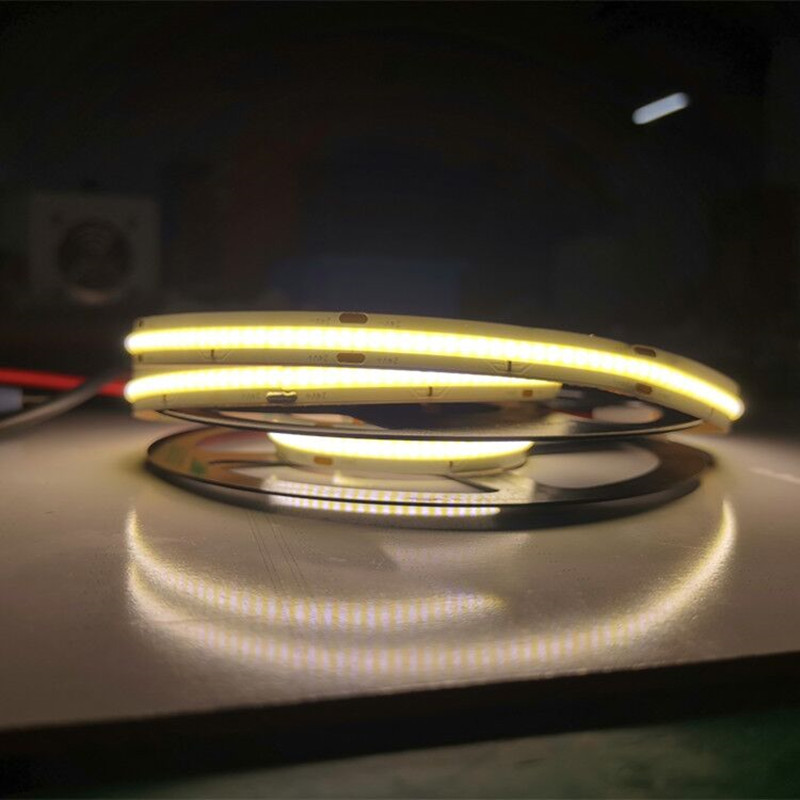

led cob strip 24v

led cob strip 24v

rgb cob led strip

rgb cob led strip

strip led cob

strip led cob

Note
1、Please make LED drivers compatible with flexible LED strips light before use LED strips;

2、To use LED strips 5M in serial, longer than 5M in parallel;
3、Before use, first check the power supply used in compliance with of the power requirements;
4、Each roll ask for independent power supply; not to use of multi-volume series use;
