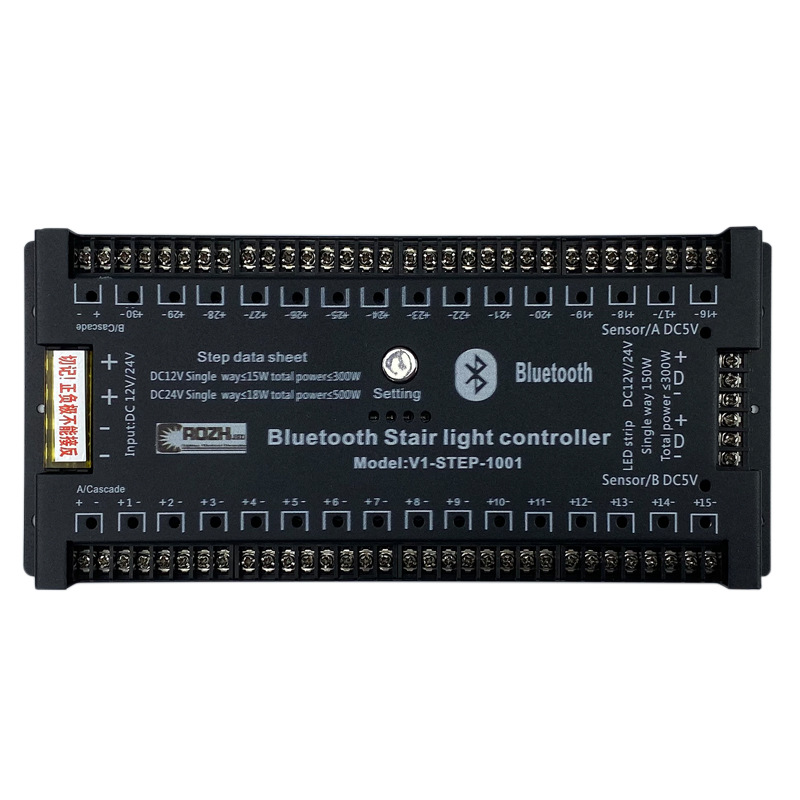

Automatic Bluetooth Stair LED Light Controller Human Body Sensor Smart Stair Light Controller
Total Power: 12V <300w, 24V<500w
Single Line output: 12V< 15w, 24V<18w
6 Light Mode
Speed adjustable + Dimmer

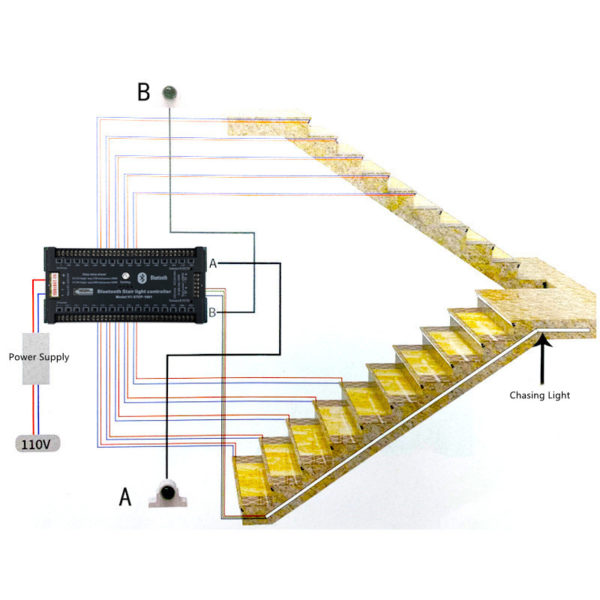

1. PIR human body infrared sensor switch, output connected with low-voltage LED light strip.
2. 32 channel constant voltage output, maximum output without channel 1A.
3. Two groups of SPI (TTL) signal output, can drive 27 kinds of IC digital RGB LED, can set IC type and R / g / b sequence.
4. OLED display and 3-button operation.
5. Four work light modes are available.
6. Two stair light controllers can be cascaded.
7. Built in a variety of color mode, speed 1-8 adjustable.
8. The button switch can also be used as an inductive signal input.
9. It has fast self-test function.
