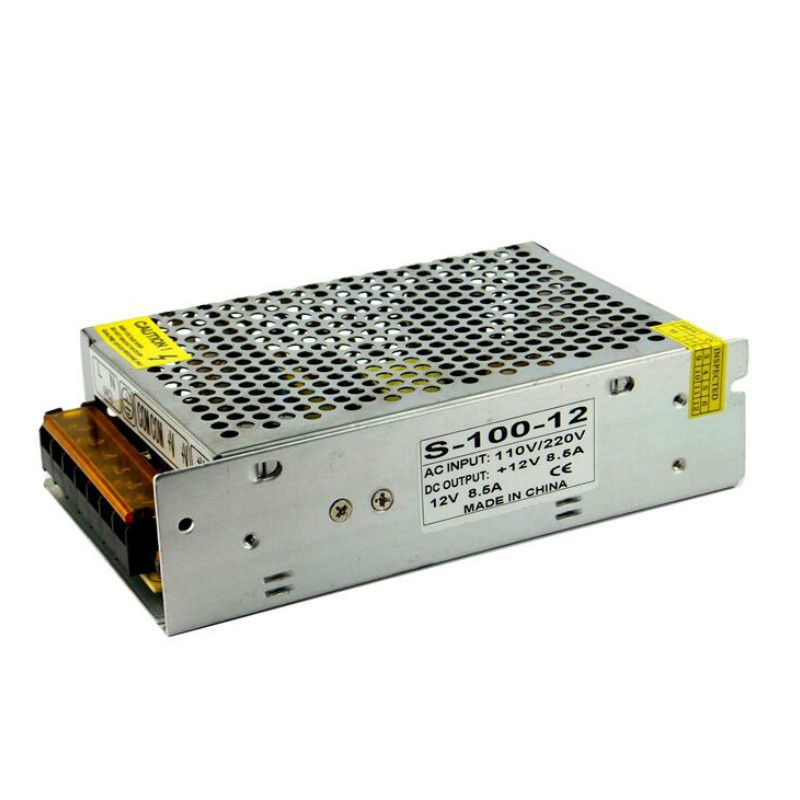

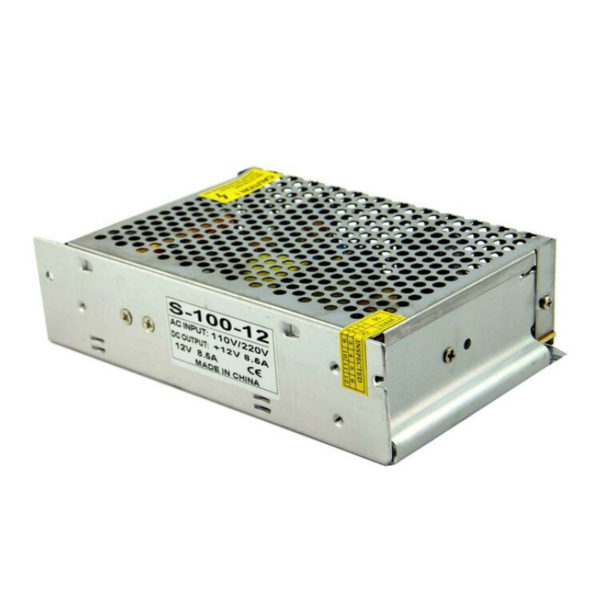

100 watt LED Power Supply
100w led driver100w power supply

CE RoHs 12V 100w 8.6A LED Driver LED Strip Power Supply Aluminium Case

Item: 100 watt LED Driver

Input Voltage: AC85-265V

Output Voltage: DC12V 8.6A

Warranty: 2 Years



Product Description

CE RoHs 12V 100w 8.6A LED Driver LED Strip Power Supply Aluminium Case

MODELS-100-5S-100-12S-100-18S-100-24S-100-36S-100-48
DC VOLTAGE5V12V18V24V36V48V
CURRENT RANGE0 ~ 20A0 ~ 8.5A0 ~ 5.5A0 ~ 4.5A0~3A0~1.2A
EFFICIENCY78%81%84%84%84%84%
WAVE & NOISE75mVp-p100mVp-p100mVp-p100mVp-p100mVp-p100mVp-p
ADJUSTABLE RANGE FOR DC VO;LTAGE±10%±10%±10%±10%±10%±10%
LINE REGULATION±0.5%±0.3%±0.2%±0.2%±0.2%±0.2%
LOAD REGULATION±1%±0.3%±0.2%±0.2%±0.2%±0.2%
SETUP, RISE HOLD UP TIME200ms, 50ms,20ms/230VAC at full load
VOLTAGE RANGE90 ~ 132VAC/180-264VAC by switch 254 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
IMPACT CURRENTCold start current 30A/115VAC 60A/230VAC
WORKING TEMP.-10 ~ +50ºC
OVERLOAD PROTECTION105%-150% cut off the output , automatic recovery
OVER VOLTAGE PROTECTION105%-150% shunt down O/P voltage,re-power on to recover
WITHSTAND VOLTAGEI/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms
DIMENSION199*98*38mm (L*W*H)
WERIGHT0.6kg
PACKING43*32.5*24cm/30pcs/18Kg
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regul
100 watt LED Power Supply

100 watt LED Power Supply

100w led driver

100w led driver

100w power supply

100w power supply

LED Driver Application

LED Driver Application

Product

A broad selection, from 10W to 1500W, full range of input of 100V-240V

Provide standard, waterproof, rainproof, slim and ultrathin products

Support OEM and ODM



Quality

Advocating total quality management (TQM)

100% full load aging test

3-year field return rate less than 2 parts per thousand



Delivery

24-hour domestic and 48 hour abroad delivery from stock for 95% orders of standard products

Delivery big volume products in 2-3 weeks



Service

Deliver customer service and technique supports in 24 hours

Average customer satisfaction tops “satisfactory” level by internal survey

Reliable Relationship
