DC12V 30W/m High Brightness 60d 5630 LED Flexible Strip 6500 Kelvin

Item:5630 led strip

Voltage:DC12v

Length: 16.4ft

LED Qty: 300d

Description

DC12V 30W/m High Brightness 60d 5630 LED Flexible Strip 6500 Kelvin

Technical Parameters



 Model No:LL-LF60-5630 Brand: LinDeng
 Input Voltage: DC 12V LEDs: SMD5630
 Total Wattage: 30W/M Color Temp: 6500K
 CRI(Ra): Ra80 Length: 5000mm (16.4ft) per roll
 Luminous flux: 50-55LM per led PCB Width: 10mm
 No. of LEDs: 300LEDs/Roll Operating Temperature: -30°C ~ 70°C
 Beam Angle: 120 degree Waterproof type: IP20/IP65/IP66/IP67/IP68
 Warranty: 2 Years Warranty Certification: CE, ROHS listed

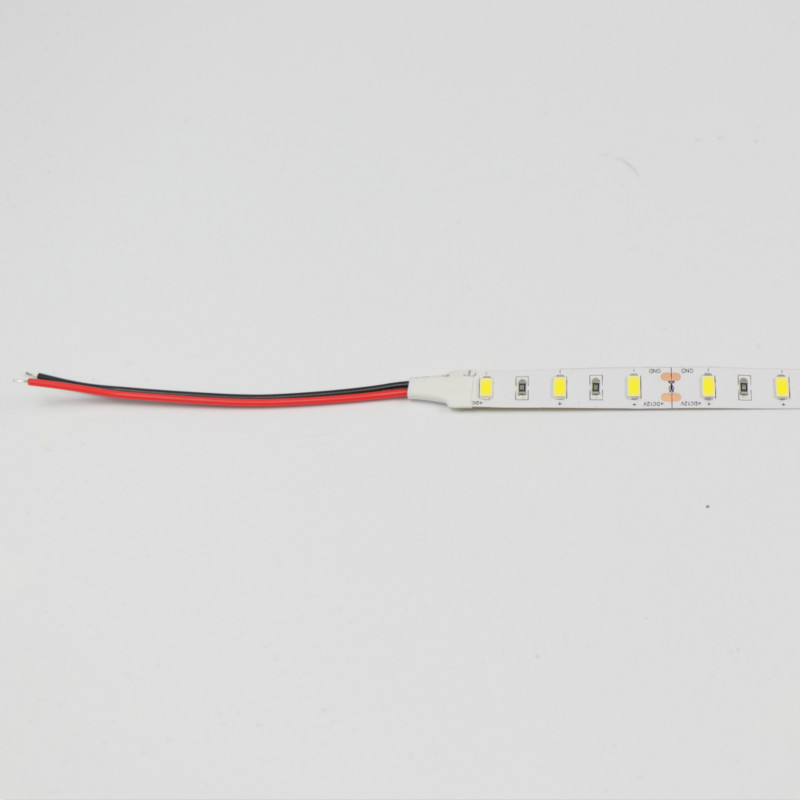

samsung smd 5630 led strip

samsung smd 5630 led strip

5630 led flexible strip

5630 led flexible strip

Flexible LED Strip Light with 16.4’ 15W 300 Diodes 5630

  1. This versatile LED Strip light is in 30W/M (30 Watts per Meter).
  2. It uses a 5630 LED Chip placed every 0.66”(16.6mm).
  3. This LED Strip has low Density Lighting with 60 didoes per meter or (18/ft).
  4. It is cuttable every 3 LED chips or 2”(50mm) for 12VDC.
  5. The pcb width of this led strip light is 10mm.
  6. It has a strong 3M adhesive tape backing on IP20 and IP65 strips that allows it to peal and stick to most surfaces.
  7. LED Strips will only achieve their maximum Lifetime installed in an Aluminum Profile to dissipate heat, protect them from elements, and create desirable lighting effects.
5630 led strip

5630 led strip

led strip 5630

led strip 5630

Product Features

  1. Wide applicability, easy toinstall and maintain;
  2. Extremely luminous, with wide viewing angle;
  3. PCBase board, unique waterproof technique;
  4. Energy saving and environmentalconservation, long lifespan;
  5. Operation low voltage (DC12V, DC24V) for humansafety, various colors available.
  6. 3 Years Warranty.
samsung 5630 led strip

samsung 5630 led strip

strip led 5630

strip led 5630

smd 5630 led strip

smd 5630 led strip

Installation Instructions

  1. Clean the surface you intend to stick the light strip to Peel off the backing strip off the adhesive tape
  2. Press and hold the light strip firmly against the surface
  3. Plug your light strip into a compatible 12V power supply or dimmer
  4. Connect your power supply to a wall outlet Enjoy your beautiful LED light strip!
  5. Our light strips are also cuttable and connectable with extension cables.
led 5630 strip

led 5630 strip

5630 led strip 6500 kelvin

5630 led strip 6500 kelvin

Voltage Drop:
The voltage drop is very common phenomenon in electronic industry, which exist in any electrical product, circuit board as well as cable. Form one point to another point, from one end to another end, as long as a distance, there definitely exist a voltage drop. The long distance, the bigger.

Suggestion for Strip length connected:
Consider voltage Drop cause brightness difference, the ideal length for strip is 5meter to connect one power supply. Both ends input helps.

LED Strip Connect

LED Strip Connect
