DC5V 43.2W/M Addressable SK6812 rgbw Digital Strip 144 LED Per Meter

$10.80

Item: SK6812 LED Strip Light

LED Qty: 144leds/m

Color: RGBW DMX

Voltage: DC5V

Description

DC5V 43.2W/M Addressable SK6812 rgbw Digital Strip 144 LED Per Meter

144LEDs Addressable sk6812 RGBW 4 in one LED Strip 5V

LED source :5050SMD RGBW built-in SK6812 chipset
Voltage(DC):5V
PCB Color: Black pCB/White PCB
Power: 30LEDs/meter ———9W / Meter
60LEDs/meter ———18W / Meter
144LEDs/meter ——-43.2W / Meter
LED type :SMD5050
IC type :SK6812
LED/per meter: 30, 60,144leds/Meter (each LED is separately controlled)
IC/per meter: 30, 60,144IC/Meter (1 IC drives 1 led chip)
Pixel /per meter :30, 60,144Pixels/Meter
Grey Grade: 256

addressable rgbw led strip | DC5V 432WM Addressable SK6812 rgbw Digital Strip 144 LED Per Meter

addressable rgbw led strip

Descriptions:

  • Wide applicability, easy to install and maintain
  • Extremely luminous, with wide viewing angle
  • PC Base board, unique waterproof technique
  •  Energy saving and environmental conservation, long lifespan.
  • Operation low voltage for human safety, various colors available
digital led strip | DC5V 432WM Addressable SK6812 rgbw Digital Strip 144 LED Per Meter

digital led strip

Detail use information:

1)Addressable RGBW color led strip (WS2812) —-WS2812ic built-in 5050 RGBW led chip
2)144pcs led per one meter
3) individually control ———-1 ic&1 led chips

4)same as our WS2801or APA 102C addressable strip ,this one cut-able each single led .

5)Sticky: with 3M adhesive on back side for sticky.
     screw+silicon clip, or 3M adhesive back side.
rgbw 144 led strip | DC5V 432WM Addressable SK6812 rgbw Digital Strip 144 LED Per Meter

rgbw 144 led strip

Connection:

SPI signal :LED strip+ LED power  supply +led controller

DMX  control :LED strip + LED power supply+DMX controller +DMX decoder

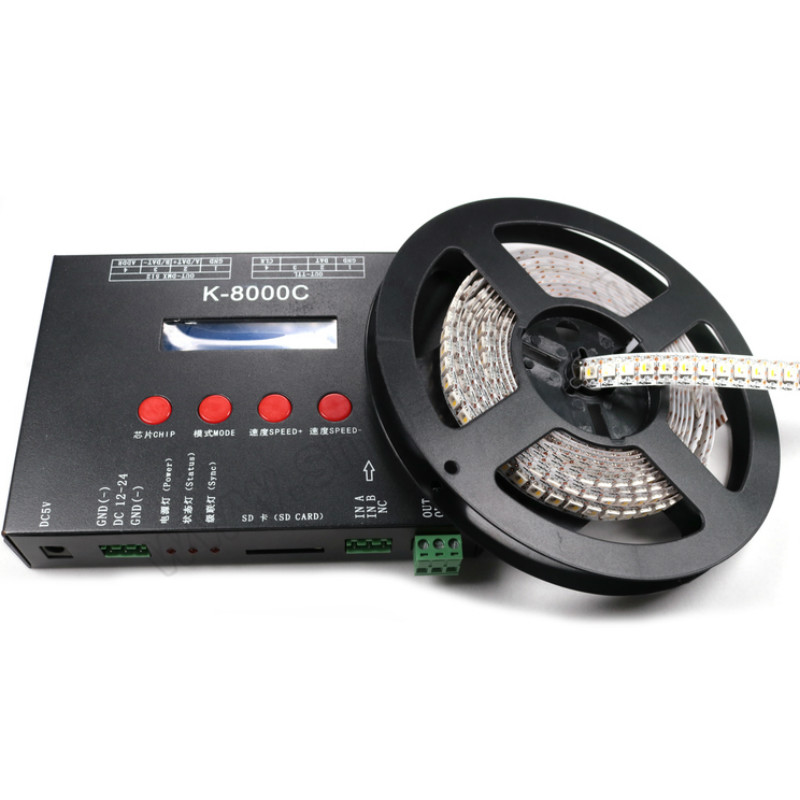

LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino………(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series …. (waterproof /non-waterproof )
rgbw led strip | DC5V 432WM Addressable SK6812 rgbw Digital Strip 144 LED Per Meter

rgbw led strip

Easy Installation

Also known as LED strip lights or ribbon lights, LED tape lights are easy to install, even for the nonprofessional. All you need to affix tape light to a surface is its “peel-and-stick” adhesive backing. Tape light makes DIY installation of under cabinet and cove lighting, accent lighting, and mood lighting a cinch!

sk6812 led strip | DC5V 432WM Addressable SK6812 rgbw Digital Strip 144 LED Per Meter


sk6812 led strip

Safe Indoors & Outdoors

LED tape light is safe for installation indoors and outdoors. 12 volt (coming soon) and 24 volt tape light options minimize the risk of electrical shorts and safety hazards frequently encountered with line voltage outdoor lighting. You can install it under eaves, on gazebos and decks, and even lining sidewalks.

sk6812 rgbw led strip | DC5V 432WM Addressable SK6812 rgbw Digital Strip 144 LED Per Meter

sk6812 rgbw led strip

Versatile & Energy Saving

Our standard output LED tape light consumes fewer than 2 watts per foot and is ideal for most accent lighting applications. Our high output tape lightuses less than 5 watts per foot and is 3 times brighter than the standard version, making it great for outdoor areas and indoor task lighting.

sk6812 rgbw | DC5V 432WM Addressable SK6812 rgbw Digital Strip 144 LED Per Meter


sk6812 rgbw

Color Changing Options

For something truly amazing, our RGB tape light is the best choice. RGB tape light uses individual red, green, and blue LEDs that mix to create multiple colors with the help of an RGB controller.

smd 5050 addressable rgb led strip | DC5V 432WM Addressable SK6812 rgbw Digital Strip 144 LED Per Meter

smd 5050 addressable rgb led strip

Do-It-Yourself Customizations

The capabilities of LED tape light are limited only by your imagination. We carry all the connectorscontrollers, and power supplies you need for your installation. For a modern and refined look, also try our aluminum tape light profiles from Klus Design.

| DC5V 432WM Addressable SK6812 rgbw Digital Strip 144 LED Per Meter

LED Strip Package

Application:

Architecture car or home decoration;

Light boxes and billboards backlighting;

Channel letters

backlighting;

Advertising signs backlighting;Amusement park, theater and aircraft cabin mood lighting;

walkway, stairway, hallway lighting.etc
