Digital individually Addressable RGB 12v WS2815 LED Strip Resume from Break Point

$6.50

The Cart are not work.
We are mainly in customize/wholesale/manufacturer LED Lights.
Face to worldwide market with different shipping rate.
Please contact us by email to get exactly quotation and make order.
You’ll get professional 1V1 customer service which replied in 24 hours.

Description

Digital individually Addressable RGB 12v WS2815 LED Strip Resume from Break Point

Max length 5M, Welcome any evaluation!

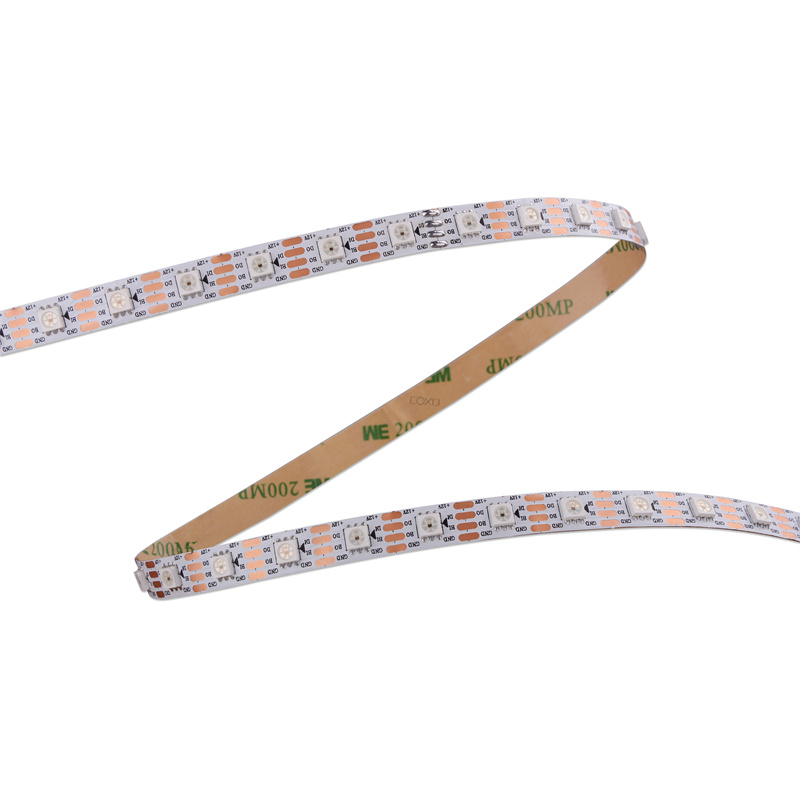

12V WS2815 LED Strip

12V WS2815 LED Strip

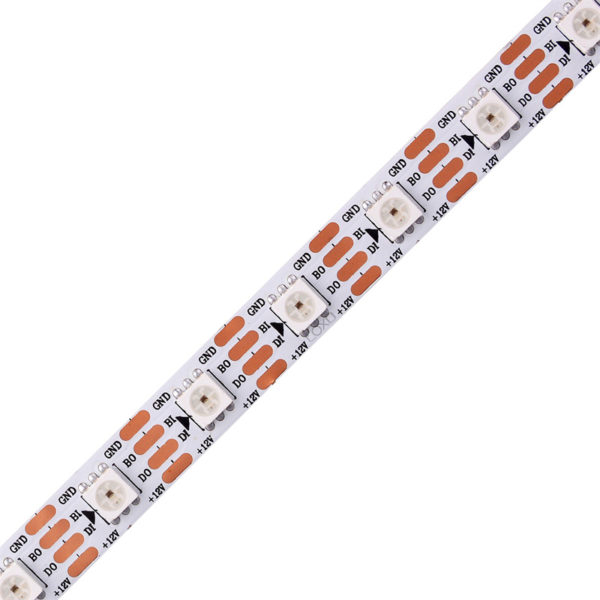

LED Light Strip WS2815

LED Light Strip WS2815

LED Strip 12V Addressable

LED Strip 12V Addressable

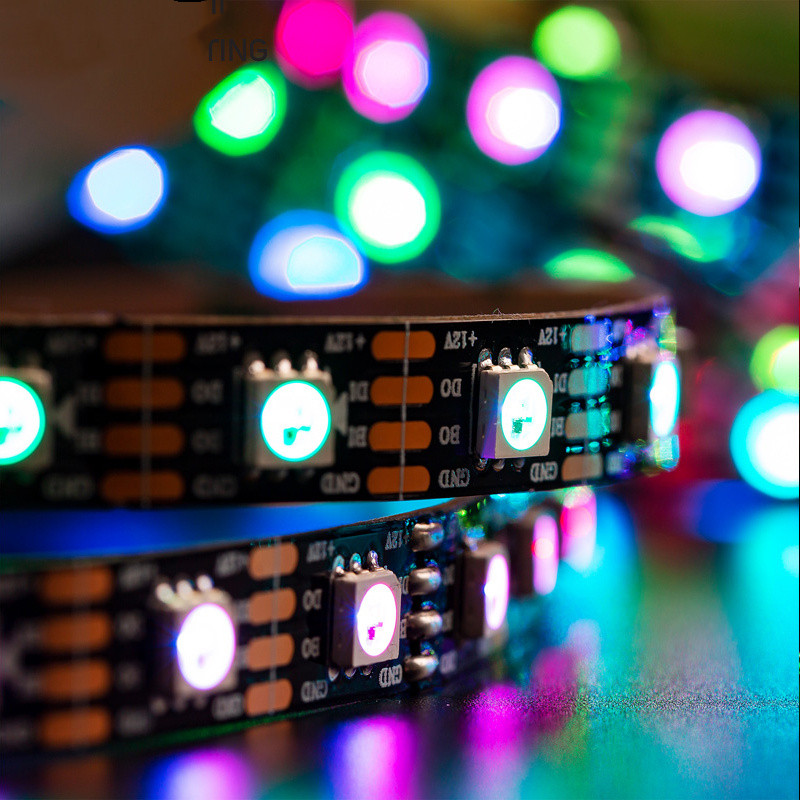

12V IC LED Strip

12V IC LED Strip

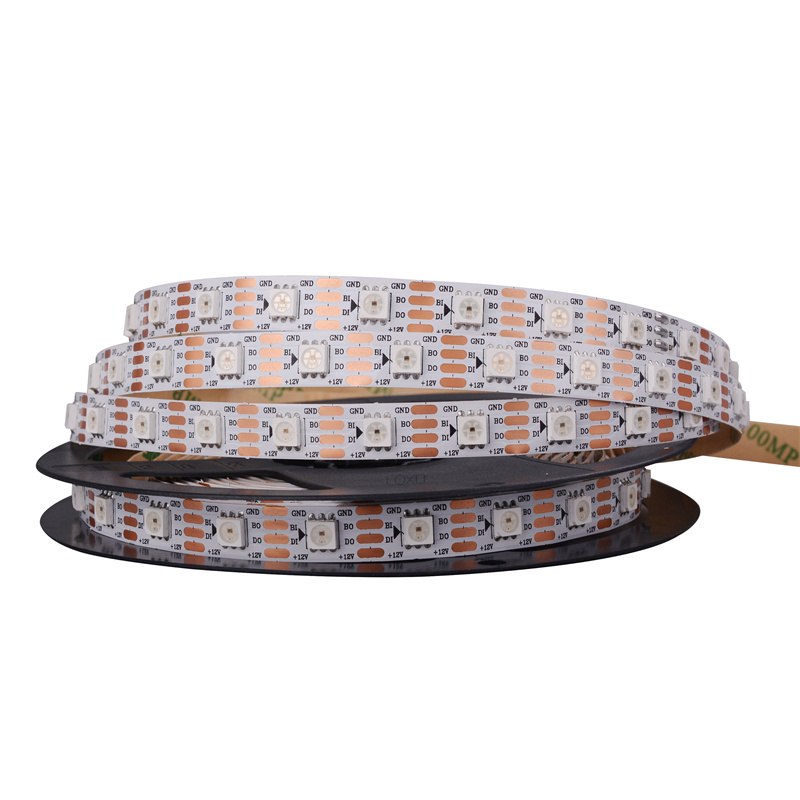

WS2815 Strip Light

WS2815 Strip Light

1) WS2815 8208 WS2812B 12V smart RGB addressable pixel led Strip is powered by a 12V power supply and is controlled by a single data line from a suitable controller.

2) 3-pin JST connector included: Red:VCC, Yellow:GND, Green:DATA.

3) The strip has 3M adhesive tape on the back. Installation surface must be smooth, clean and dry.

4) Strip can be cut between every LED to create custom lengths.

5) Do not bend strip sharply.

6) Longer runs should be powered from both ends to reduce voltage drop.

7) 30leds/m, 60leds/m available, one roll max Length can be 10M.

Model number
LL-W2815-60
 LED TYPEE
SMD 5050  RGB  chip
Available color
RGB
IC Model
WS2815
Color
Addressable full color
View angle
120 degree
LED QTY
60LEDS/M
POWER
14.4w/m
PCB Width
10mm
Voltage
DC5V
Installation
wiht 3M adhesive back ,easy for installation
IP rate
IP20/IP65(Silicon tube )/IP67/IP68
Package
5M/reel .with anti-static bag
Application
indoor /outdoor decorative lighting  ,ceiling lighting ,sign lighting etc.
LED Strip resume from break point

LED Strip resume from break point

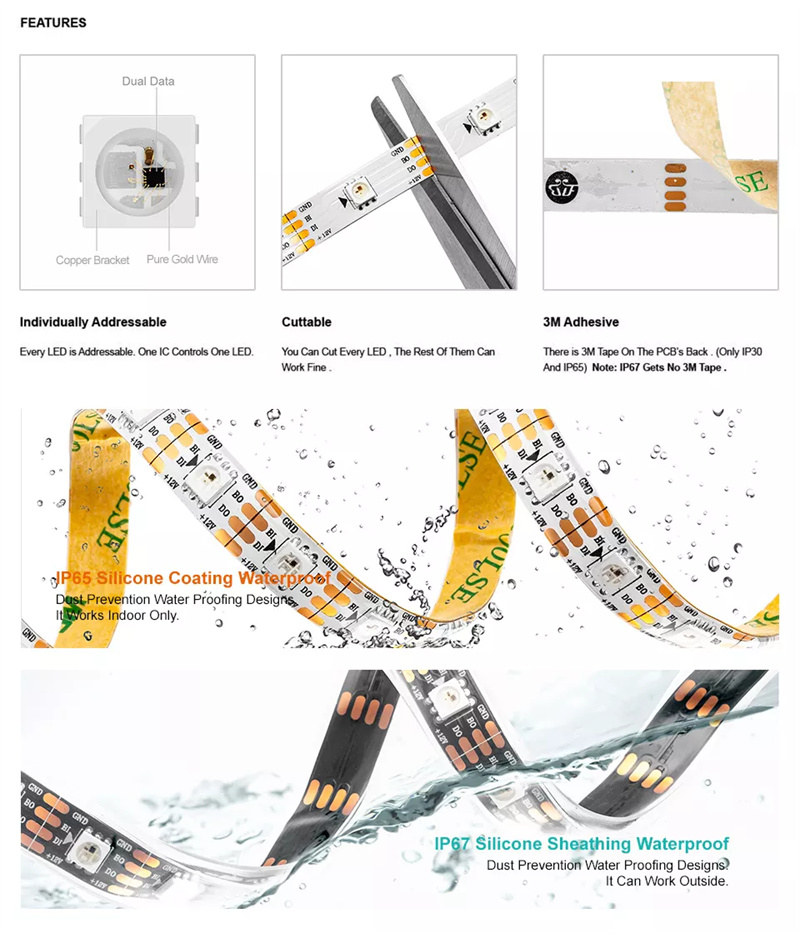

WS2815 LED Strip Features

WS2815 LED Strip Features

WS2815 LED Strip

WS2815 LED Strip

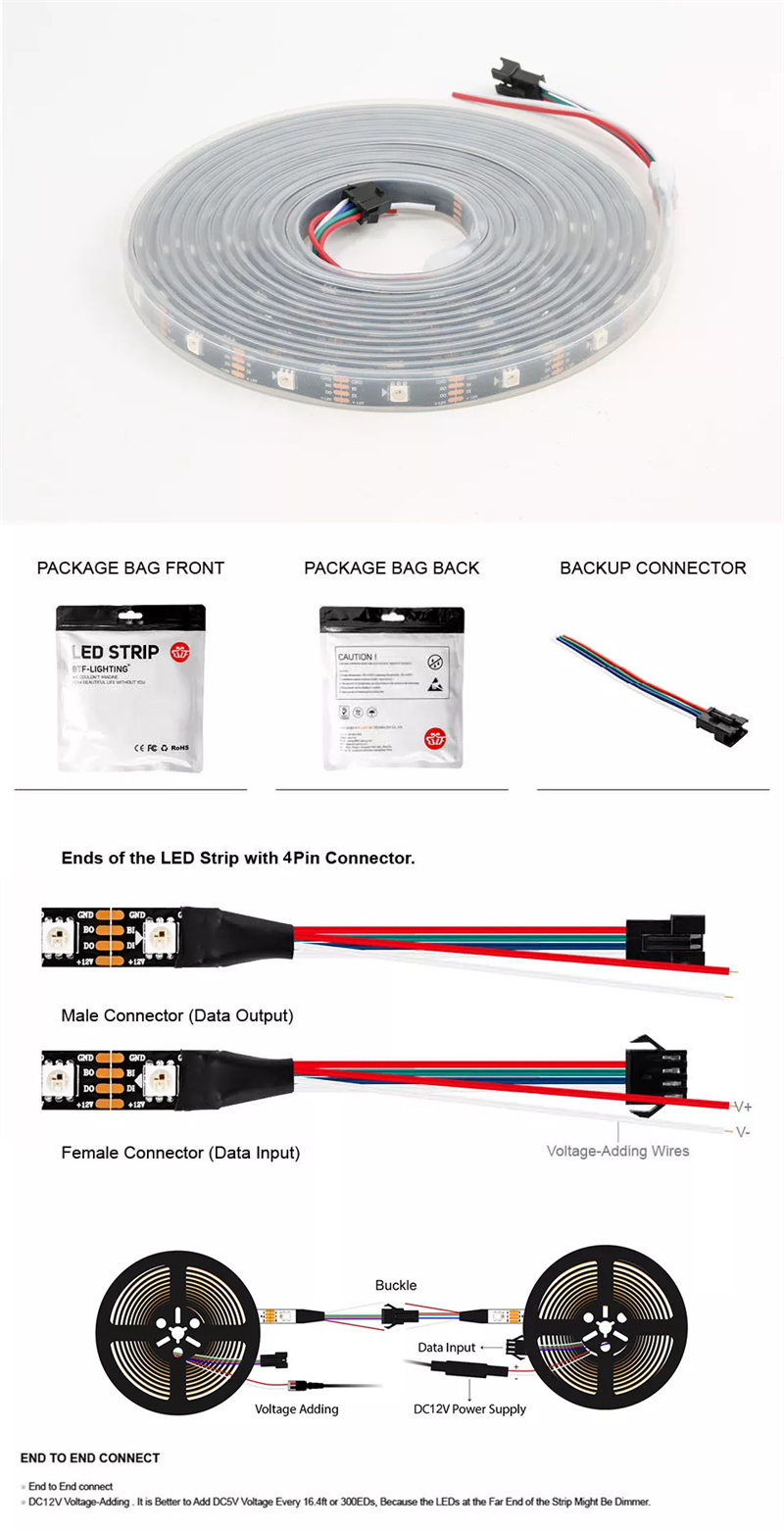

WS2815 LED Strip Connect

WS2815 LED Strip Connect

Detail use information:

12v indivially addressable ws2815 ts1211 60led led rgb pixel strip led tape
1)Addressable full color break point   led strip ws2815 ic built-in 5050 RGB led chip
2)60pcs led per one meter
3) individually control ———-1 ic& 1 led chip

4)same as our  ws2813 addressable strip ,this one cut-able each single led .

1.Widely used for home decoration use, hotels, clubs, shopping malls.

2.Architectural decorative lighting, boutique atmosphere lighting.

3.Extensively applied in Backlighting, concealed lighting, channel letter lighting.

4.Emergency & security lighting, advertisement sign lighting.

5.Decorative lights for holiday, event, show exhibition.

6.Applicable for automobile and bicycle decoration, border or contour lighting.

SPI signal :LED strip+ LED power  supply +led controller DMX  control :LED strip + LED power supply+DMX controller +DMX decoder  LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino………(off line /PC online) LED power supply :Meanwell power supply ,T- series ,A-series …. (waterproof /non-waterproof )

 4 PIN wire stands for

Red : + 12V

Green : DAT

Yellow : DAT

Black : GND



Connection:
1) Signal wire: DC+,  DAT, GND
2) DC+ and GND connect to power supplier;  DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2812B/WS2811 ; when use DMX decorder, can connect to DMX system
