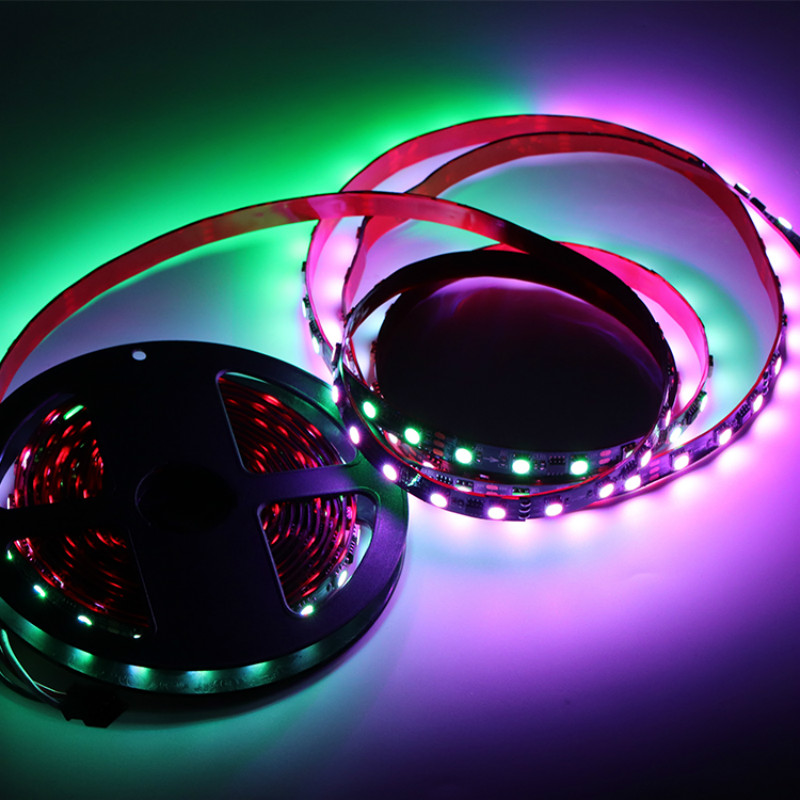

Digital Tape WS2811 IC 12V 14.4W 60LED 20Pixel RGB 5050 ws2811 LED Strip

$4.60

Item: RGB 5050 ws2811 LED Strip

Voltage: DC12V

LED Qty: 60ledsd 20 pixels

PCB Color: Black\White PCB

Description

Digital Tape WS2811 IC 12V 14.4W 60LED 20Pixel RGB 5050 ws2811 LED Strip

Pixel LED Strip also called Addressable LED Strip or Digital LED strip,which can achieve effects like chase, running water, symphony, display and so on.

 1.Magic full color, while showing a variety of colors light
2.With 3M glue on the opposite side(IP20/IP65), good flexibility
3.Every 3 LEDs cuttable, 30leds/m, 32 leds/m,48leds/m,60leds/m
4.High quality 2811 IC and 5050 LED chip, high intensity and reliability
5.Ultra-bright but running at low temperature and low power consumption
6.Completely smooth and even light spread, solving the uneven luminous problem
7.Long life span 50,000 hours, 1 years warranty
8.Great for holiday, disco, party, home, garden and shops decoration etc.

9. LED Brightness: Red ~600mcd, Green ~500mcd, Blue ~150mcd

10. Digital strip light are addressable, WS2811,WS2812b,WS2813,SK6812,LPD8806,APA102,DMX512 types

Digital Tape WS2811 IC | Digital Tape WS2811 IC 12V 144W 60LED 20Pixel RGB 5050 ws2811 LED Strip

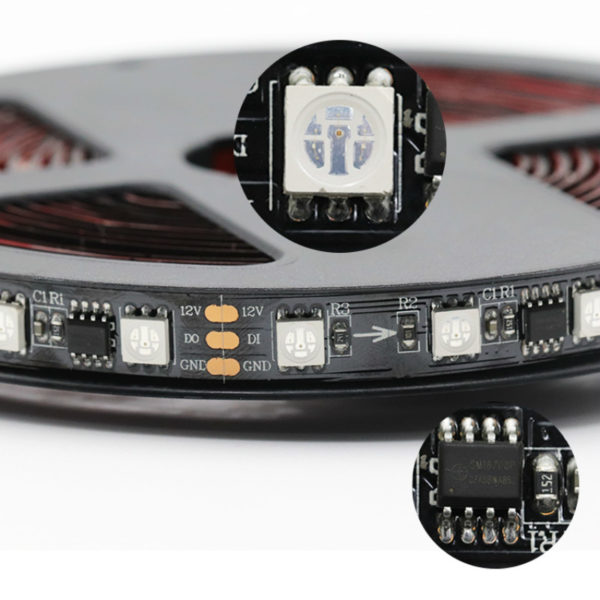

Addressable LED Strip | Digital Tape WS2811 IC 12V 144W 60LED 20Pixel RGB 5050 ws2811 LED Strip

Addressable LED Strip

Item
WS2811 LED Strip
 LED TYPEE
Epister SMD 5050  RGB
Color temperauter
  Addressable
PCB color
white or black PCB
PCB Width
10mm
View angle
120 degree
LED QTY
60LEDS/M
POWER
14.4 W/M
Voltage
DC12V
Installation
wiht 3M adhesive back ,easy for installation
IP rate
IP20(non -waterproof /IP65(Silicon tube  waterproof )
Package
5M/reel .with anti-static bag  ,or customized
Application
indoor /outdoor decorative lighting  ,ceiling lighting ,sign lighting etc.
WS2811 LED Strip | Digital Tape WS2811 IC 12V 144W 60LED 20Pixel RGB 5050 ws2811 LED Strip

WS2811 LED Strip

RGB 5050 ws2811 LED Strip | Digital Tape WS2811 IC 12V 144W 60LED 20Pixel RGB 5050 ws2811 LED Strip

RGB 5050 ws2811 LED Strip

Connection:
SPI signal :LED strip+ LED power supply +led controller
DMX control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino………(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series …. (waterproof /non-waterproof )
Controller and Power supply:
T-1000S/8000  +Meanwell power:

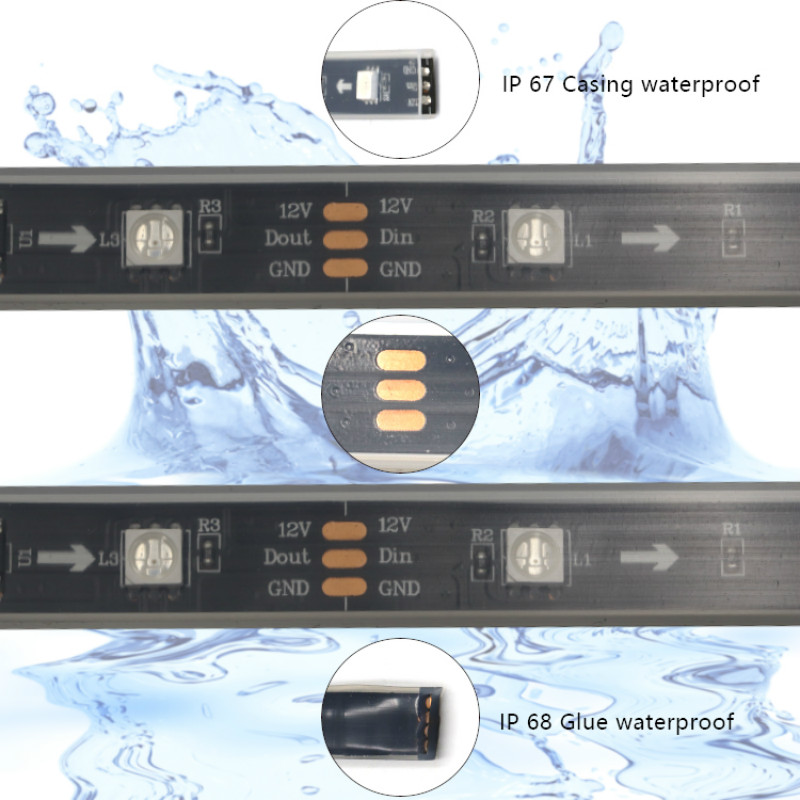

Waterproof WS2811 LED Strip | Digital Tape WS2811 IC 12V 144W 60LED 20Pixel RGB 5050 ws2811 LED Strip

Waterproof WS2811 LED Strip

LED Strip Application | Digital Tape WS2811 IC 12V 144W 60LED 20Pixel RGB 5050 ws2811 LED Strip

LED Strip Application
