Description

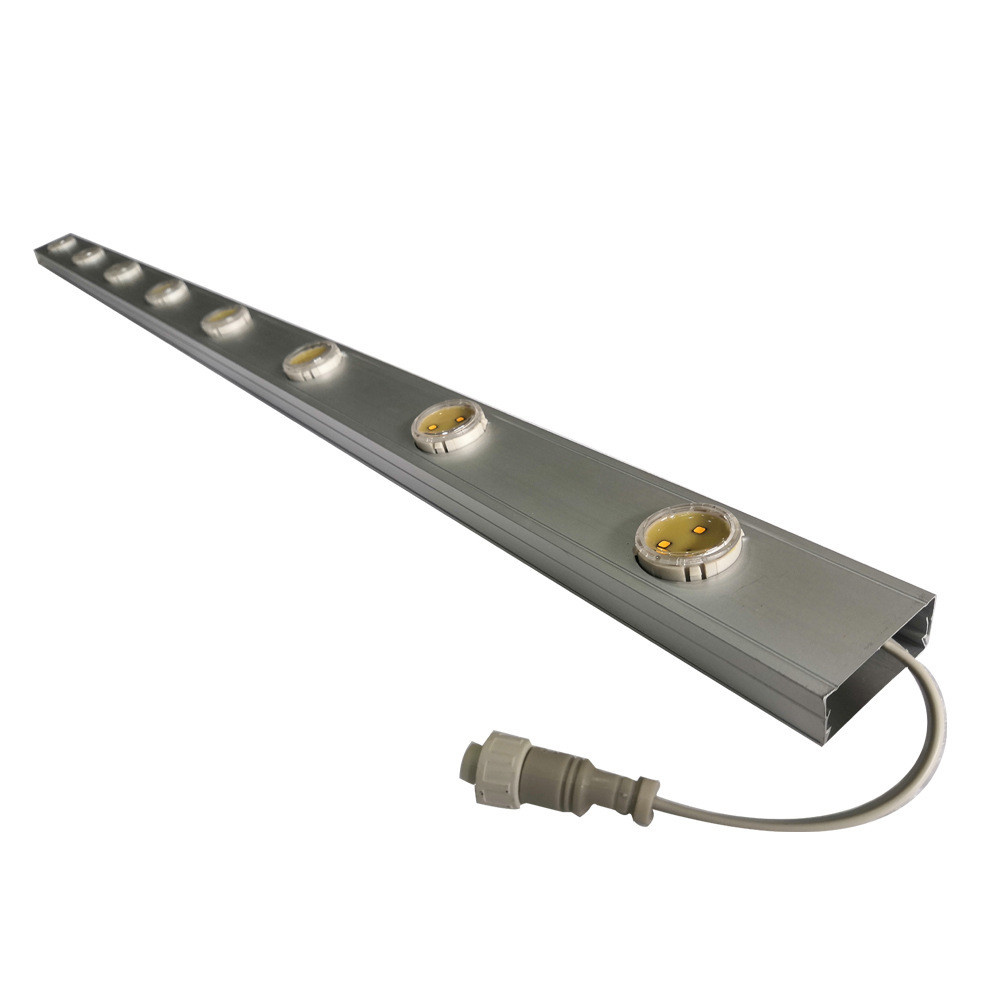

Full Color LED Pixel Point Source Light Outdoor Pixel Strings with Aluminum Profile
The Aluminum profile LED Point Light Adapt 50mm programmable lamp which can be individually control, each Led lamp control by one UCS1903 IC chip.
With addressable light you can set to any color, or animate, like running water, chasing and scanning etc. Can be support by SD card controller K-1000C, T-1000S, Artnet, DMX, Ardunio and others.
Each lamp with PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connect together inside the aluminum profile.
It professional design for outdoor use with silicon glue waterproof protection, IP66 Waterproof Grade. It also use 3PIN waterproof JST female and male connectors.
This kind of LED Linear Lights are high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful, easy to install which can fix by scews.
Power supply should use a DC5V-24V, use wrong voltage may destory the pixel light.
Quick Details :
| Part NO | LL-459-24V |
| Lighting Source | 9pcs SMD5050 RGB LED |
| Beam Angel | 140 degree |
| Operate Voltage |
DC24V |
| Consumption Watt/M | 22 Watt (max) |
| Lamp Diameter (mm) | 50mm diameter |
| Length | 1000mm |
| IC chip | UCS1903 /ws2811 |
| Cover | Transparent / milky white |
| Waterproof Grade |
IP66 |
| Lifetime | 50000H |
| Working temperature | -20℃-60℃ |
| Storage temperature |
-30℃-80℃ |
pixel strings with aluminum
Pixel Point Source Light
Outdoor Pixel string
led pixel string

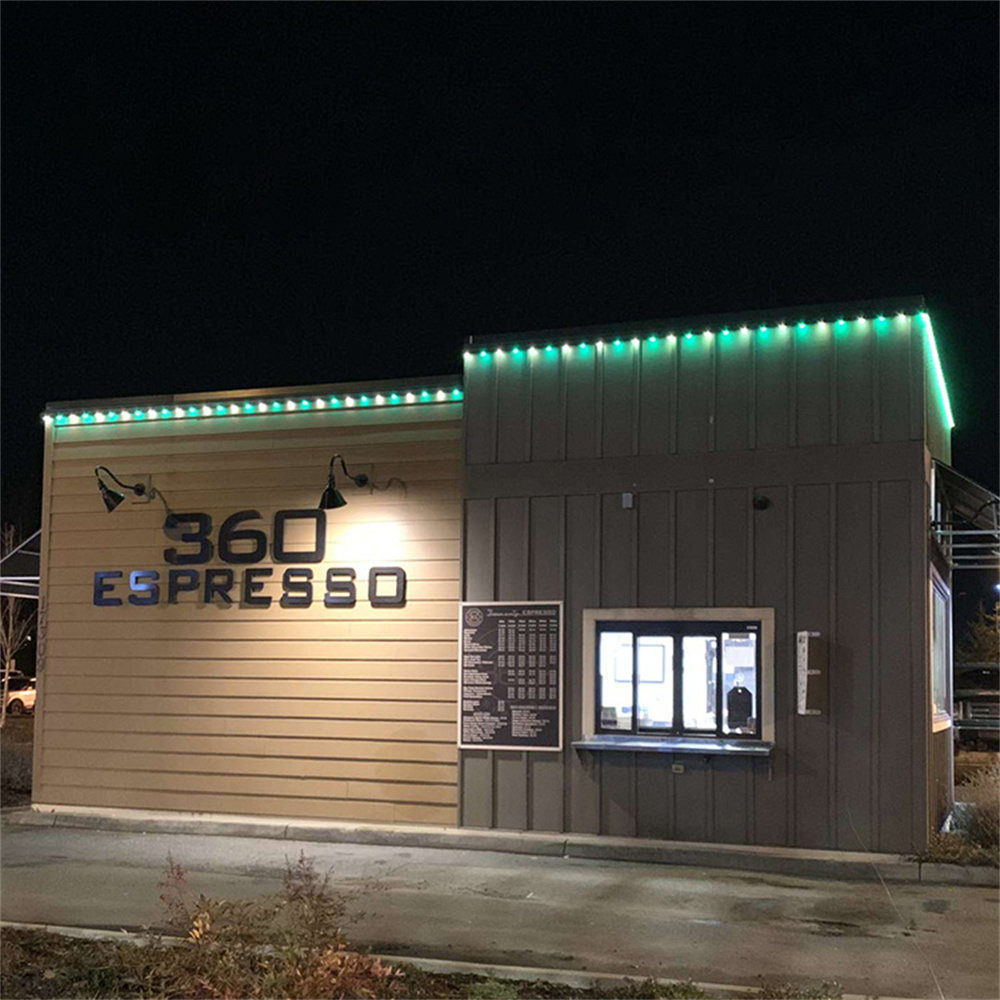

outdoor light project

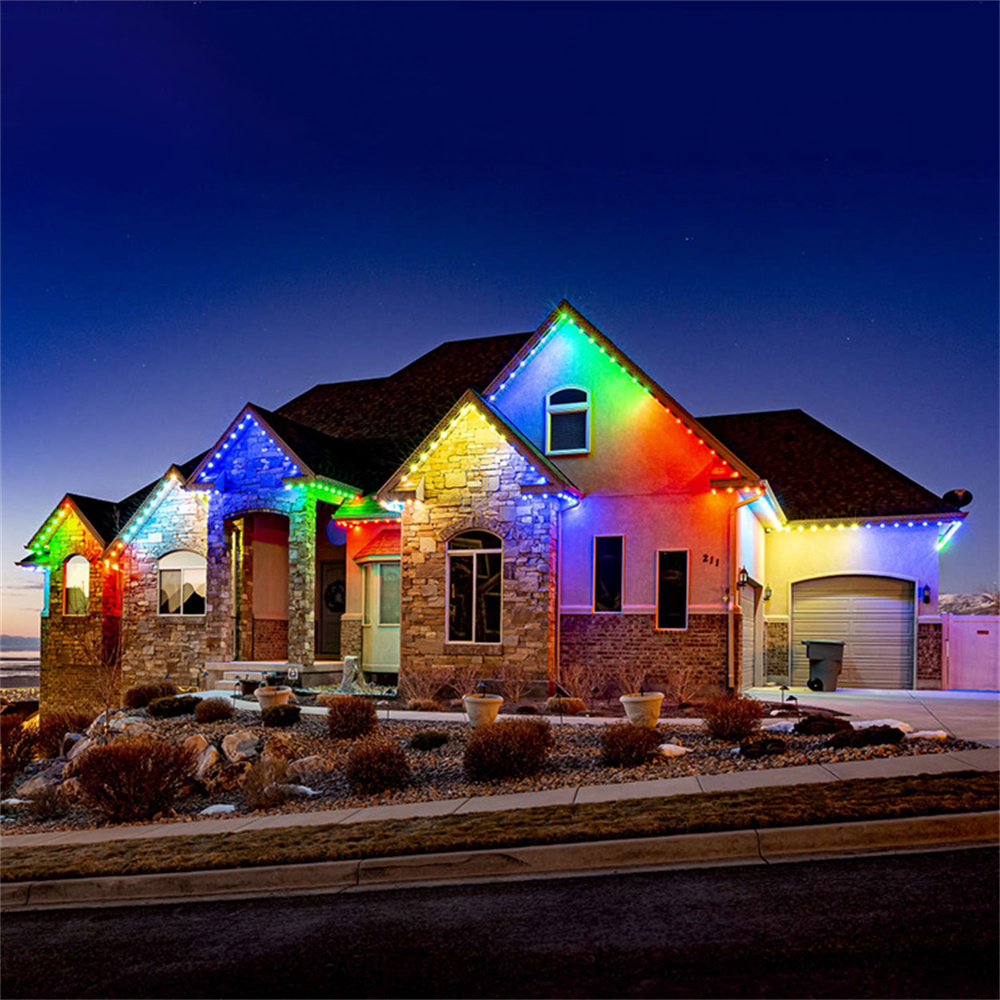

outdoor lighting project

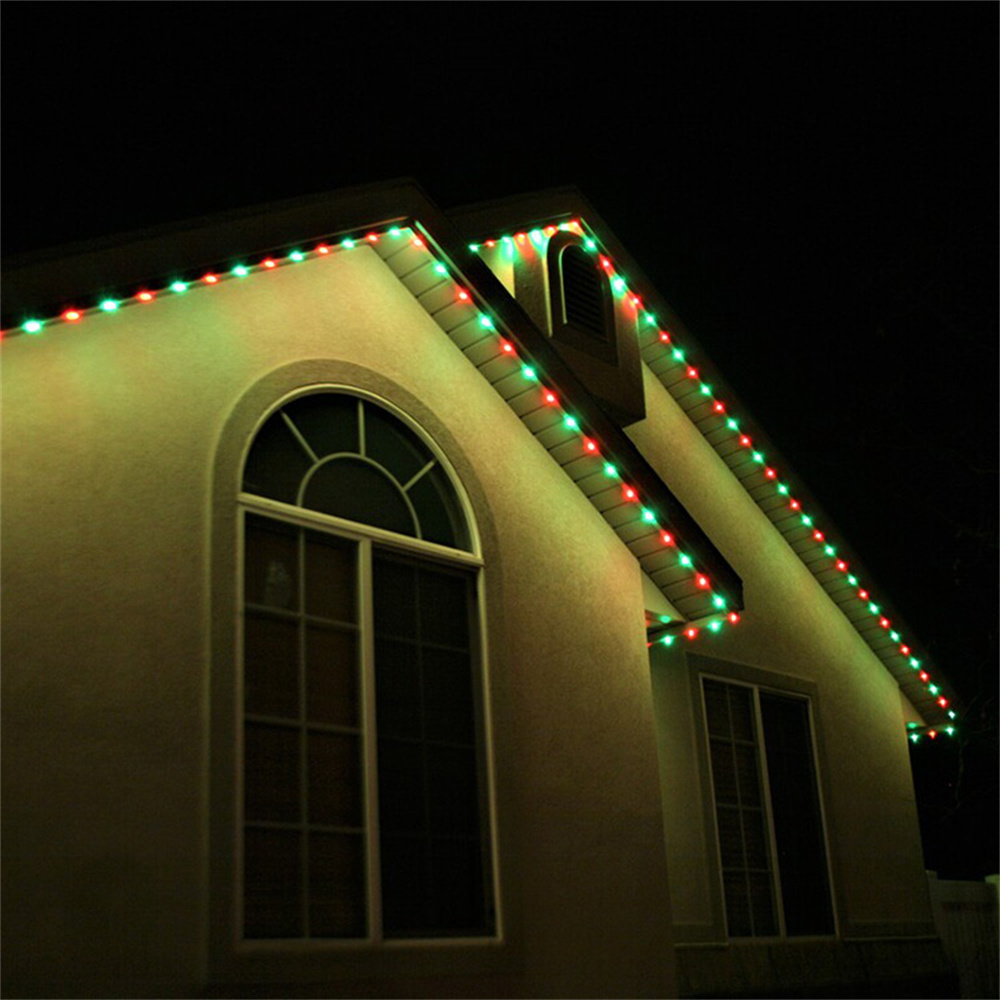

outdoor lighting
point pixel lamp
point pixel outdoor
Q1: Can I get some samples for wholesale Linear LED Pixel Light?
Also offer sea shipment + Custom Clearance + VAT + UPS Dispatch to your address directly in a very cheap rate.
