Description
IP68 Underwater Pool 2835 LED Strip Dual Row Tape Light 120 LED Per Meter
Features:
- High quality smd2835 led strip
- DC12V or DC24V input voltage option
- Silicon coated waterproof
- IP68 Waterproof
- Cutttable
- Both end with Waterproof DC Male/Female connector
- Normal package 24V 10meters/roll
- Customized length also accepted,like 6m,8m,8.5m,or other special length
- IP67 Waterproof driver also available
- Long lifespan
- Fast delivery time
- Special in this filed over 3 years
Dual Row SMD LED flexible strip light adopts high brightness SMD2835 as the light source with qualified heat-resistant PCB.
It is available in pure white, warm white, cool white, red, green, blue and yellow. 3led (12v dc) or 6led (24v dc) as a group
and can be cuttable by different length which has the 3M adhensive tape on the back of the strip
It is widely used for indoor decoration, signs, back lighting and led lighting, etc.
6500K Double Row 2835 LED Strip

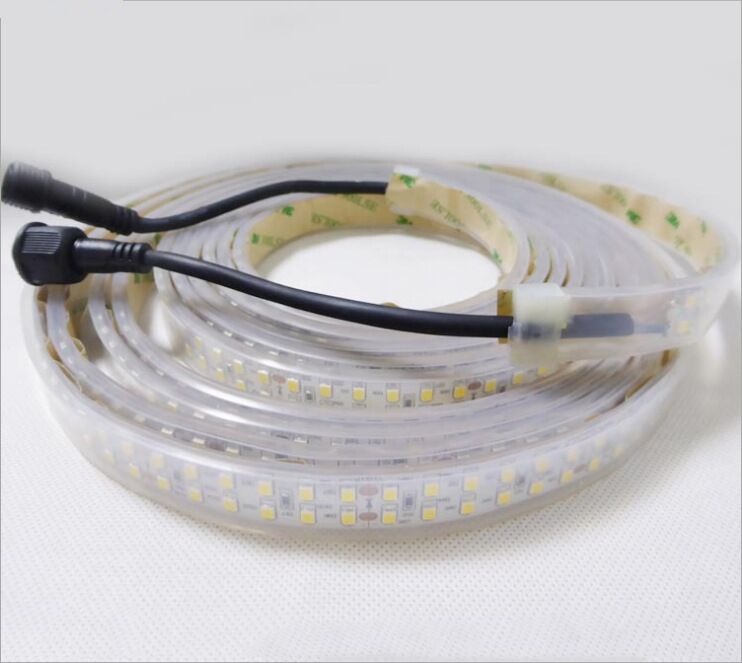

6500K Double Row 2835 light Strip
| Specification | |
| Product Name | 240D smd2835 led strip light |
| PCB Width | 14mm |
| Voltage | DC 24V |
| Lumen Flux | 20-22lm per led |
| Power | 24W/M |
| Light source | SMD 2835LED |
| LED Number | 240PCS/M |
| Dimension | 10000*10*1mm |
| Beam angle | 120 degrees |
| Color range | W/WW |
| Lifespan | >50,000 hours |
| Working temperature | -40~+50 °C |
| PCB | FPC |
| Protection rate | IP20/IP65/IP68 |
| Certificate | CE, RoHS |
| power factor | 0.85-0.9 |
| packing | Anti-static bag |
| packing size | 25bags/ctn |
Product Features:
1. Super bright 2835 SMD LED, high intensity and reliability.
2. Long life span 50,000 hours
3. packed with 10 meter per roll.
4. Flexible ribbon for curving around bends
5.Completely smooth and even light spread, solving the uneven luminous problem
6.Ultra-bright but running at low temperature
7.Low power consumption
Double Row LED Strip IP68
Double Row LED Strip light 2835
Double Row LED Strip smd2835
| SMD2835 Strip Light Series | ||||||
| Part No. | PSB301B | PSB601B / 602B | PSB961B / 962B | PSB121B / PSB122B | PSB142Y | PSB242B-D |
| LED Type | SMD2835 | |||||
| LED Qty/M | 30 | 60 | 96 | 120 | 140 | 240 |
| Color | 2700K Warm white 3000K Warm white 4000K Natural white 6000K Cool white |
|||||
| Working Voltage | DC 12V/DC 24V | DC 24V | ||||
| Lumen/LED | 19-21 lm | |||||
| Watt/Meter | 2.4W | 4.8W | 7.7W | 9.6 W | 28.8 W | 19.2 W |
| IP Rank | IP20 | |||||
| CRI | 80 | |||||
| Dimension | 5000×10mm | 5000X8mm/5000×15mm | ||||
Swimming Pool LED Strip
IP68 LED Strip
Installation Instructions
Accessories Of LED Strip
LED Strip Package
