Knob Switch Dimmer intelligent Lighting Dimming System 12V Rotary Dimmer Switches LED Control

$13.40

All in one Integrated dimmer Control system.

1pcs Wall Panel Switch Max can control 50pcs Dimmer.

Description

Knob Switch Dimmer intelligent Lighting Dimming System 12V Rotary Dimmer Switches LED Control

1pcs Wall Panel Switch max can control 50pcs LED Dimmer controller, for a big intelligent dimming system, the max control distance from Wall Panel Switch to LED Controller Dimmer is 50 meters.

RF Dimming Controller are optical.

This Touch Panel is a kind of remote controller, it has no limited on power, but need to be work with our professional Controller together, we have following Contollers for option,
Model Number Specifications

LV0

12A Dimmer Controller

Input voltage: 5-36VDC
Input signal: 0/1-10V
Output type: PWM constant voltage
Output Current: 1 Channel, ≤8A
Output power: 12V<80W,24V<160W
Overload ProtectionProduct Size: 97*33*18
Net Weight: 42g

LV-L

12A Dimmer Controller

Input voltage: 12-36VDC
Input signal: 0/1-10V, press switch
Output type: PWM constant voltage
Output Current: 1 Channel, ≤12a
Output power: 12V<144W,24V<288WProduct Size: 175*45*27
Net Weight: 112g

L4-L

20A Dimmer Controller

Input voltage: 12-36VDC
Input signal: 0/1-10V, press switch
Output type: PWM constant voltage
Output Current: 4 channels, each channel ≤ 5A
Output power: 12V<240W ,24V<480WProduct Size: 175*45*27
Net Weight: 112g

We adapt digital dimming, use IC to control the sensitive and accurate dimming effect.

The low quality LED Dimming controller or 2-in-1 LED dimming power supply which are adjust the voltage or current to adjust the brightness. The dimming speed very slow and the dimming grade also very low.

0-10V dimmer adopts the advanced micro control unit, It can receive the 0-10V analog control signal which is internationally widely used. It changes the signal into PWM control signal to actuate the LED lamp. Dimming range from 0-100%, stable and soft.

Dimmer for LED Strip | Knob Switch Dimmer intelligent Lighting Dimming System 12V Rotary Dimmer Switches LED Control

Dimmer for LED Strip

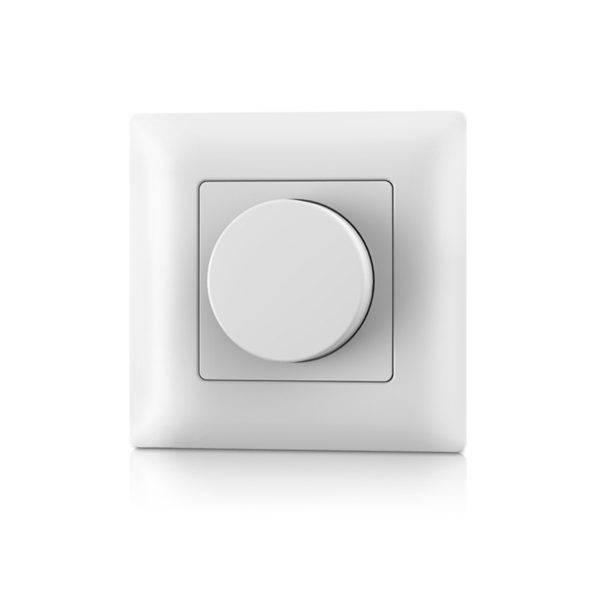

LED Strip Dimmer | Knob Switch Dimmer intelligent Lighting Dimming System 12V Rotary Dimmer Switches LED Control

LED Strip Dimmer

0 10V LED Dimmer | Knob Switch Dimmer intelligent Lighting Dimming System 12V Rotary Dimmer Switches LED Control

0-10V LED Dimmer

Dimming ON Off Smart Switches | Knob Switch Dimmer intelligent Lighting Dimming System 12V Rotary Dimmer Switches LED Control

Dimming ON Off Smart Switches

LED Dimmer for LED Strip | Knob Switch Dimmer intelligent Lighting Dimming System 12V Rotary Dimmer Switches LED Control

LED Dimmer for LED Strip

Specification 1 | Knob Switch Dimmer intelligent Lighting Dimming System 12V Rotary Dimmer Switches LED Control

Specification 1

Specifications 2 | Knob Switch Dimmer intelligent Lighting Dimming System 12V Rotary Dimmer Switches LED Control

Specifications 2

Specification 3 | Knob Switch Dimmer intelligent Lighting Dimming System 12V Rotary Dimmer Switches LED Control

Specification 3

Safety information

1. The dimmer control system shall be installed and serviced by a qualified electrician.

2. This dimmer control system is non-waterproof.

3. Goodheat dissipation will prolong the working life of the LED driver, please ensure good ventitation.

4. Ensure all wire connections are correct before applying power to avoid any damages to the LED lights.

5. If a fault accurs please contact us. Do not attmept to fix this product by yourself.

Warranty agreement

1. 5-year warranty

●The warranty is for free repair or replacement and covers manufacturing faults only.

●Do not include fees of on site maintenance and consumumable parts.

2. Limited warranty

●Artificial damage caused by improper use, such as improper accessories, improper installation, did not follow the instructions, error using or negligence.

●Any damages caused by force majeure, such as natural disaster, abnormal voltage.

●The normal use of products caused by aging, wear and tear, but it does not affect the normal use.
