LED Strip 230 v Cool White 5050 60d Waterproof 220v Strip 100m per roll With Plug


Item: High Voltage LED Strip Light

Power: 14.4w/m

IP Grade: IP65

Color: Cool White


LED Strip 230 v Cool White 5050 60d Waterproof 220v Strip 100m/roll With Plug

Pay attention :

Dear buyer:   100m/roll led strip light 220v 5050 smd led strip dimmable led strip lights.This is a type 110V/120V  or  220V/230V High voltage 5050 SMD 60leds/m LED flexible ribbon tape strip. Factory offer wholesale Brand New  Hight voltage 5050 60leds/m  led  flexible strip stripe strips tape ribbon light 5050smd light stripe dimmer led strip  ribbon.

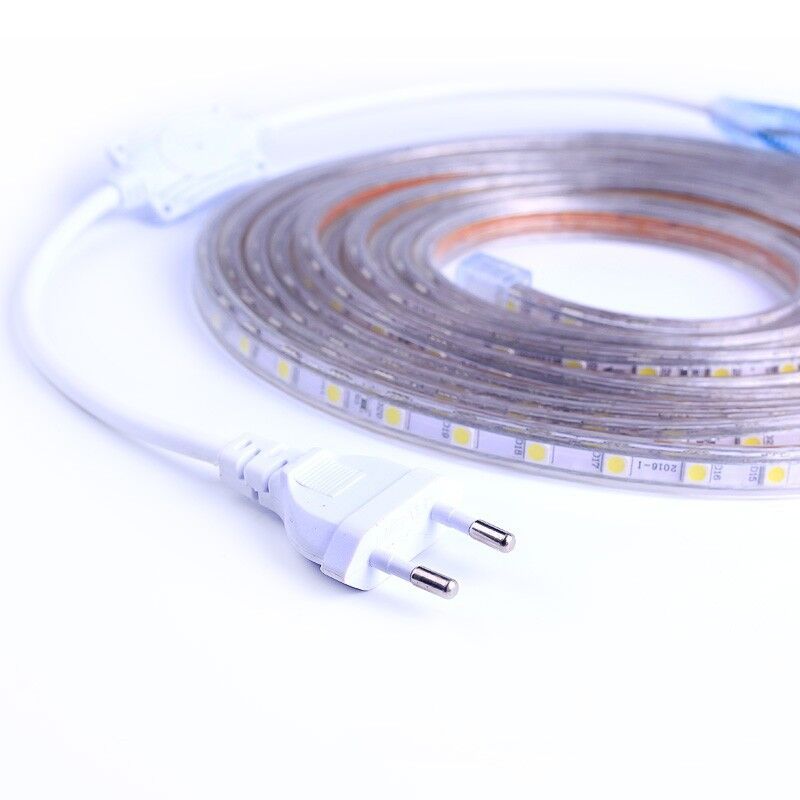

230v led strip light

230v led strip light

Package & Delivery of our SMD5050 flexible strip light

  • Packaging Detail: box packing according to clients’ requirements, OEM and ODM is available.
  • Delivery Detail: 2-5days for samples,6-10 days for mass production.
  • Shipping Detail:By express: Such as DHL,UPS, TNT, FEDEX ect.
  • Air Freight:When you order moer than 100kg which will be more economical than express,
  • Sea freight: Shipping by SEA is available after customer provide destination port.
  • Agent designated by client: Please tell us the contact details of your shipping agent/forwarder.

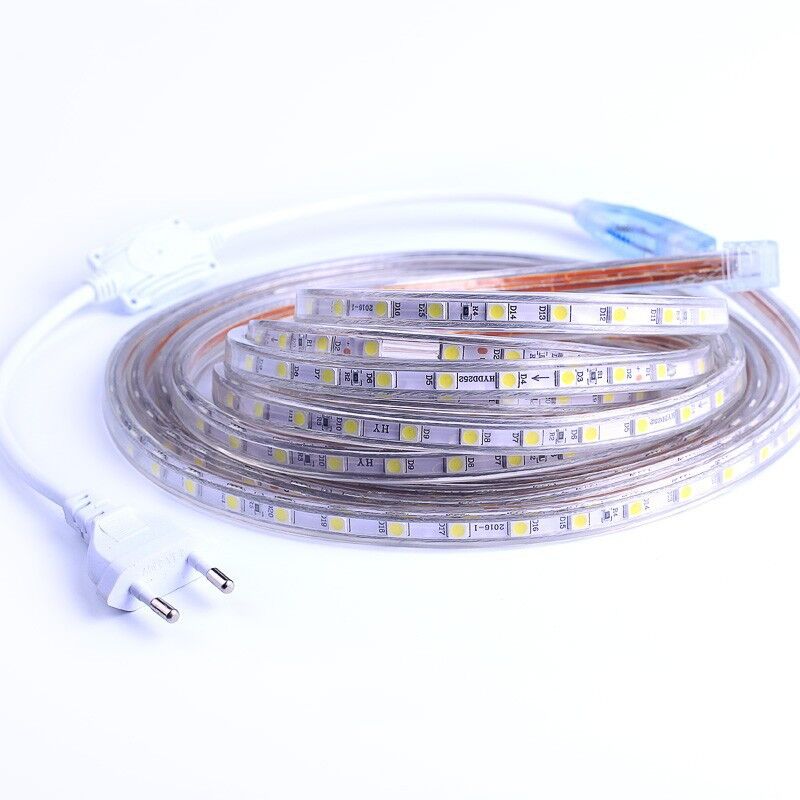

230v led strip

230v led strip

Features of our SMD5050 flexible strip light

1.SMD5050 or smd2835 ,300LEDs/ 5m

2.Directly contact to AC110V,120V,130V; or AC220V,230V,240V, no need power supply;

3.CE/RoHS ,Pass EMC,EMA,LVD quality standard

4.Epistar /Sanan Led Chip

5:10-12lm/led,12-14lm/led,15-18lm/led,18-22lm are available

6:Pure White:5500-6000k,Nature White:4000-4500k, Warm White:2700-3200k, Cool White:6500-

7000k,7000-7500k,RGB ,Red ,Green,Blue,Yellow ,are available .

7:PCB Color have White ,Yellow.

8:Waterproof Style have ,P68.

9:The maximum length of SMD3528 new generation strip could be 200m without  pressure drawdown, while SMD5050 could reach to 100m with single power supply cable.

10:PCB size:12mm

led strip 230 v

led strip 230 v

Installation Diagram:

1.Install:Take out the package,make sure it comes with necessary accessories,which should include:fixing clips,middle plugs,end caps,head wires.fix the strips with clips onto where you need,put the wire into sockets to light the strips.

2.Cut: Please cut the strips only along the cutting mark on the PCB,don’t cut at random.Block up the end with end caps,seal with enough glue to make sure it is still waterproof.

3.Connect: Plug the head wire into a strip to conduct the electricity,or plug a middle plug into the ends of two separate strips to connect them into a long strip,after well connected,seal all the plugs with enough glue.

led strip 230v

led strip 230v

Detail Technical Data of our SMD5050 flexible strip light

LED Color Model LED Qty Color temperature Input Voltage Beam Angle Power Packing
5050 Red LL-R5050-60 60 620-625nm AC85-265V 120° 14.4w/m 50m/roll
Yellow LL-Y5050-60 60 585-590nm AC85-265V 120° 14.4w/m 50m/roll
Blue LL-B5050-60 60 465-470nm AC85-265V 120° 14.4w/m 50m/roll
Green LL-G5050-60 60 520-525nm AC85-265V 120° 14.4w/m 50m/roll
Purple LL-PU5050-60 60 395-405nm AC85-265V 120° 14.4w/m 50m/roll
Pink LL-PK5050-60 60 * AC85-265V 120° 14.4w/m 50m/roll
Pure white LL-PW5050-60 60 6000-7000K AC85-265V 120° 14.4w/m 50m/roll
Cool white LL-CW5050-60 60 8000-10000K AC85-265V 120° 14.4w/m 50m/roll
Warm white LL-WW5050-60 60 2800-3500K AC85-265V 120° 14.4w/m 50m/roll
RGB LL-RGB5050-60 60 * AC85-265V 120° 14.4w/m 50m/roll

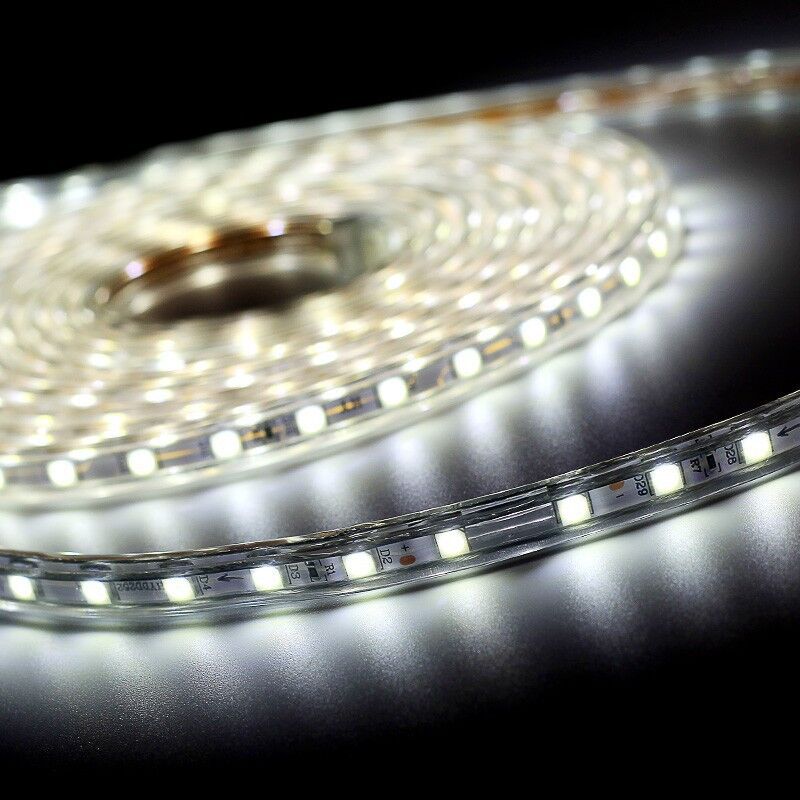

led strip white 220v

led strip white 220v

Applications of this SMD5050 flexible strip light

1.Channel Letters,Back lighting,LED task Lighting,Cove LED lighting,Retail LED lighting,

2.Sign illumination LEDs,Under cabinet lighting,Display case and accent lighting,Cove Lighting

3.Automotive Accent Lighting,Canopy Illumination,Back Lighting,LED Task Lighting

4.Retail LED Lighting,Sign Illumination LEDs,Accent Lighting,hotel led lighting

5.Smartphone and Tablet Compatible RGB Controller and much more
