Description

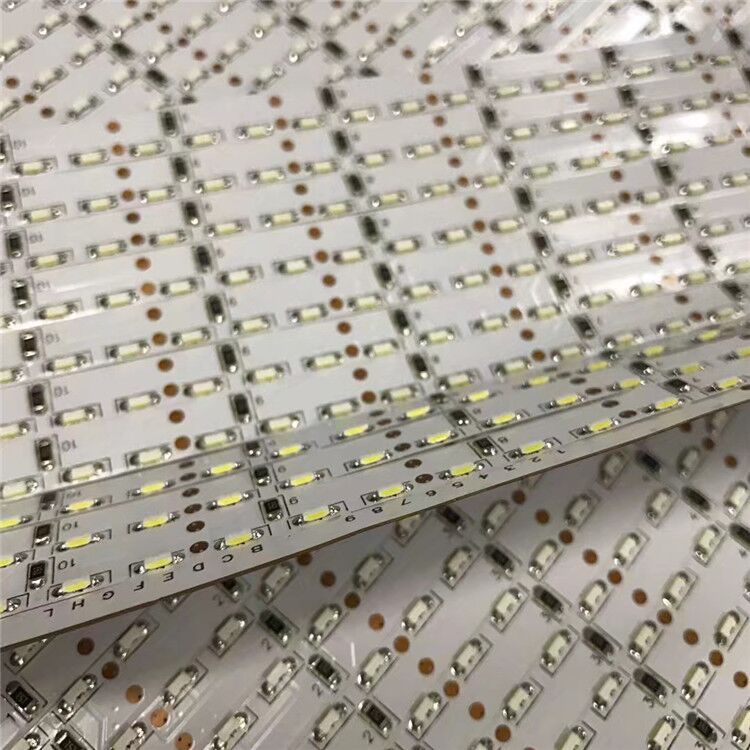

Side Emiting LED Strip DC12V SMD 335 LED Light Strip2000k Warm White LED Strip Light
Offer Items : 1, 12V or 24V 335 60leds/m 120leds/M IP30 led strip
Wholesale High brightness smd 335 led strip with 180ledsm 180led white RGB color for advertising
High quality , Super brightnss, 3 years warrenty offer
Name : led strip light smd 335 led strip
SMD : 335 SMD Epistar Chip LEDs/m : 120leds/m
Color : 3000K to 6000K Voltage : DC12V / 24V Options
Power : 9.6W/M, IP Rank : IP30
Packing : 5M/REEL , 335 led strip
Welcome to contact us for more information !!
warm led white strip light
FEATURES:
1.Width: 6mm, 5m/reel;
2.Viewing angle : 120 degrees;
3.Cuttable at 6 leds
4.Color available:single color RGB;
5.5 meter packing
6.Long life: 50,000 hours;
7.Board material: FPC;
8.Input: DC 12V , 9.6watts per meter;
Specifications:
Light Color White: white,warm white
LED Quantity :335, 600pcs/m 120led/m
Input Voltage : 12V DC
Operating Current : 0.4A
Input Power : 4.8w/9.6 W
Water Proof :IP20/IP65/IP66
Lumens :550LM/5 meter
Size: 22.5*22.5*30
View Angle: 120° Gross weight
Illumination range 0.5-1.5 m
Storage Temperature -40°C—-+80°C
Operating emperature -25°C—-+60°C
2000k warm white led strip light
Specifications
Product Name | Side View LED Strip Light |
Model Number | HY-335-240 |
LED Quantity | 120Leds/m (2 side emitting ) |
Luminous Flux | 700LM/M |
Beam Angle | 180° |
Working Voltage | DC12V,DC24V |
Wattage | 28W/M |
PCB Width | 15MM |
PCB Color | White PCB, 2 Layers |
LED Type | SMD335 Side Emitting LED |
LED Lumens | 6-7LM/LED |
Light Color | Warm White, Natural White, Pure white, Cold White Red, Green, Blue… |
IP Grade | IP20 Non waterproof with adhesive tape on the back IP66 Soft tube waterproof |
Length | 5Meters/roll, both end of strip with power lead wires |
Package | Packaged with Anti-Static Bag |
Certification | CE RoHS |
Warranty | 2 Years Warranty |
335 led strip
Warning:
1.Supply voltage of this product is DC12; never connect to other high voltage.
2.Never connect two wires directly in case of short circuit.
3.Lead wire should be connected correctly according to colors that connecting diagram offers.
4.Warranty of this product is 2 years, in this period we guarantee replacement or repairing with no charge, but exclude the artificial situation of damaged or overload working.
smd 335 led strip
APPLICATIONS:
1) Indoor and outdoor decorative lighting and backlighting
2) Emergency hallway lighting
3) Auditorium walkway lighting
4) Outdoor illuminated signs and advertisements
