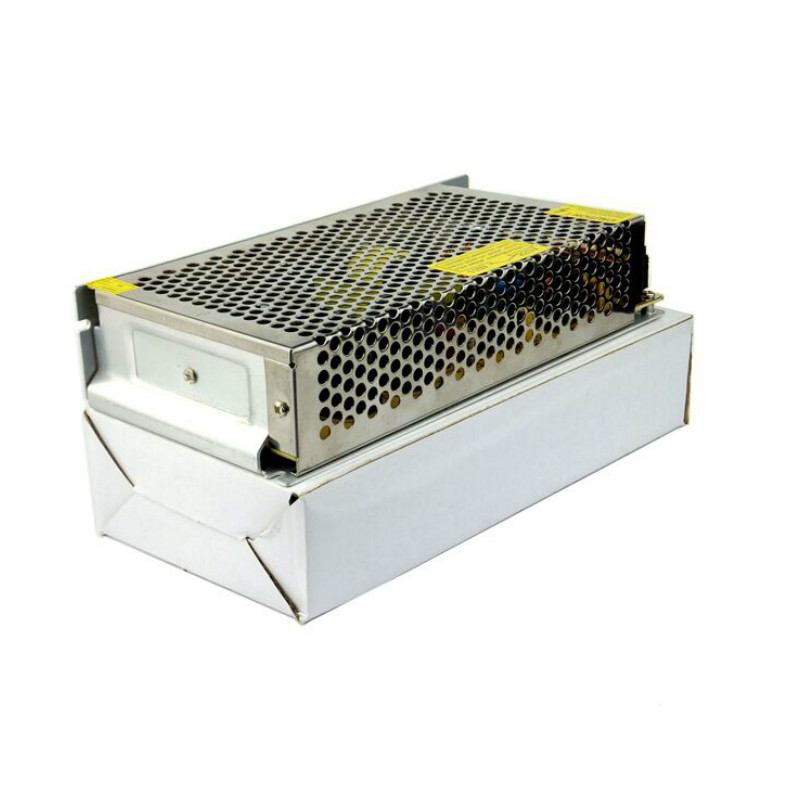

150w power supply
150w LED Driver12V LED Power SupplyPower Supply DetailsPower Supply PackagePower Supply ApplicationPower Supply WorkShop

Single Output DC12V 12.5A LED Driver 150w LED Strip Power Supply Indoor

Product Description

Single Output DC12V 12.5A LED Driver 150w LED Strip Power Supply Indoor

The Single Output DC12V 12.5A LED Driver 150w  LED Strip Power Supply that operates from 90-305Vac input with excellent power factor. It is created for street, tunnel and bay lights. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

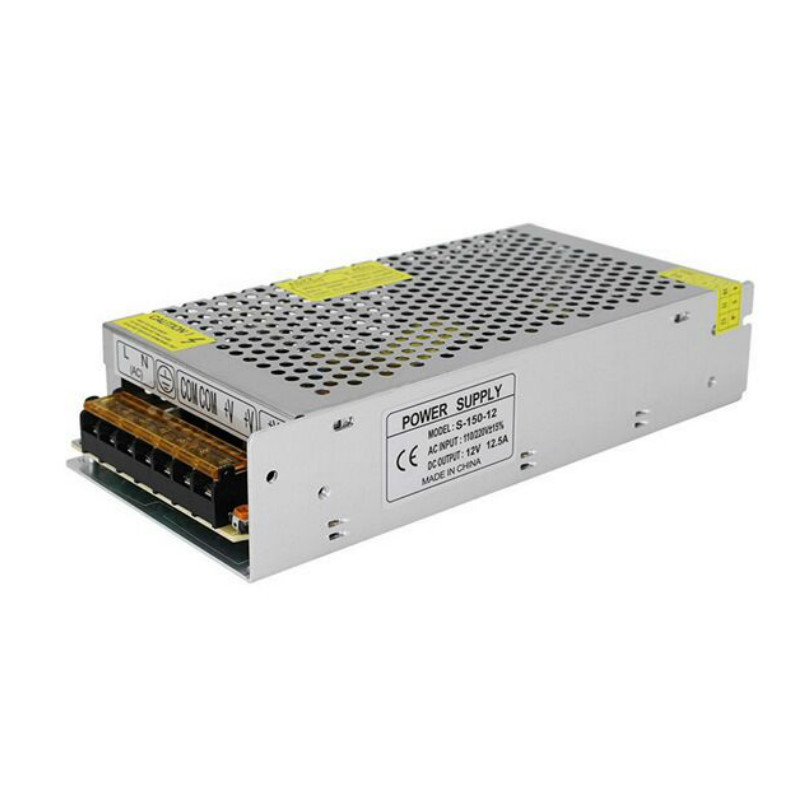

12V LED Power Supply

12V LED Power Supply

150w LED Driver

150w LED Driver

ModelLRS-150-12LRS-150-15LRS-150-24LRS-150-36LRS-150-48
Dc output voltage12V15V24V36V48V
Rated output current12.5A10A6.5A4.3A3.3A
Output current rage0-12.5A0-10A0-6.5A0-4.3A0-3.3A
Rated  Power150W150W156W154.8W158.4W
Wave and noise150mVp-p150mVp-p200mVp-p200mVp-p200mVp-p
Voltage ADJ. range10.2-13.8V13.5-18V21.6-28.8V32.4-39.6V43.2-52.8V
Voltage tolerance±1%±1%±1%±1%±1%
Line Regulation±0.5%±0.5%±0.5%±0.5%±0.5%
Load Regulation±0.5%±0.5%±0.5%±0.5%±0.5%
Efficiency87.5%88.5%89.0%89.0%90.0%
AC input voltage rangeAC85~AC264V    47~63Hz; 240~370VDC
Input current2.8A/115V   1.6A/230V
AC INnrush currentCold-start  60A/230V
Overload proctection110%~140% Potection type: Hiccp mode,recobers automatically after condition recoverd
Over-voltage protection13.8-16.2V18.75-21.75V28.8-33.6V41.4-48.6V55.2-64.8V
Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time 500ms,30ms/230VAC 500ms,30ms/115VAC at full lod
 Hold up time40ms/230VAC ,35ms/115VAC at full lod
Withstand voltage I/P-O/P:3.0KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC
Isolation resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Working temperature-20°C~+70°C
Overall dimension215*115*50mm
Safety standardsCE(EMC,LVD)RoHS GMC
EMC standardsMeet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B
Weight0.62Kgs
Power Supply Details

Power Supply Details

Certifications

Certifications

Power Supply Application

Power Supply Application

1. What  is the warranty of the  driver?

— It’s 2 years warranty

2 .What is MOQ of the led driver?

–1pcs

3.Can we get  samples for testing?

— Yes,sample order welcomed.

4.What is delivery of the sample and bulk order?

— 7 working days for samples, 15-25days for the bulk order  after receiving payment.

5.What is the payment?

–Paypal,T/T in advance,LC,western Union,visa,credit card,MoneyGram,30% deposit,70% against  documents.

      USD,  EURO are acceptable here.

6.How to delvery the samples and bulk order goods?

— By DHL,UPS,FedEX,TNT,EMS for samples,

   — By air or by sea for bulk order

Power Supply Package

Power Supply Package

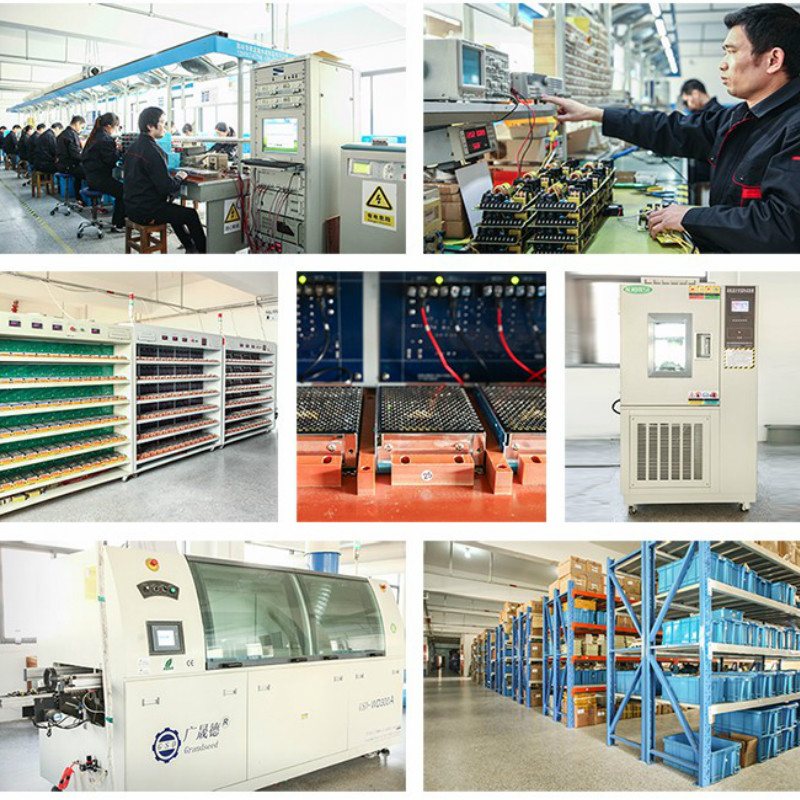

Power Supply WorkShop

Power Supply WorkShop
