SMD3528 120LEDs/m Dual Color LED Strip Adjustable CCT High CRI>95 LED Strip 24V

$3.20

Item: LED Strip CCT

LED Chip: SMD3528

LED Quantity: 120leds\m

Color Temperature: Dual Color



Description

SMD3528 120LEDs/m Dual Color LED Strip Adjustable CCT High CRI>95 LED Strip 24V

high quality 3528SMD warm and cool dual color white LED strip for advertising

Dual color white 3528SMD LED strips

Life span: 50000 hours

Lower power consumption

Easy installation

No UV no IR light radiation

No mercury or other inorganics

No spots, no shadow

Highest optical efficiency



Color temperature for white:

Warm white: 2400-3500K

Pure white: 4000-5500K

Cool white: 6000-7000K

Cold white: 8000-10000K

Available color: white, red, yellow, blue, green, purple

Save and stable for using

CE, Rohs certification

Working voltage: DC24V

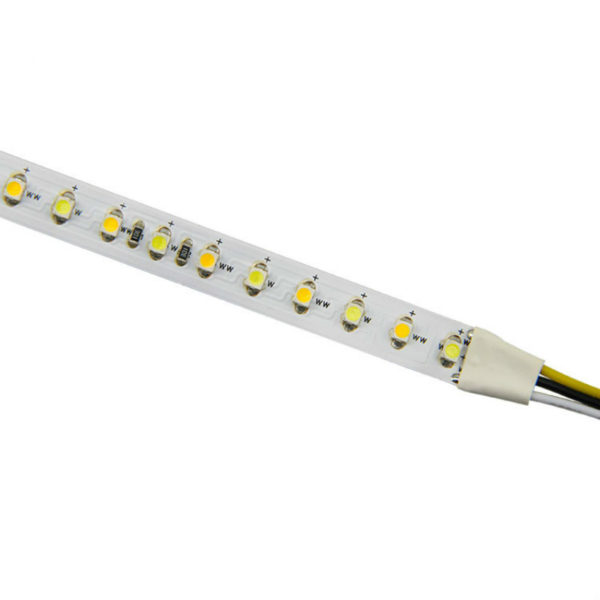

Dual Color LED Strip | SMD3528 120LEDsm Dual Color LED Strip Adjustable CCT High CRI>95 LED Strip 24V

Dual Color LED Strip

led strip 24v cct | SMD3528 120LEDsm Dual Color LED Strip Adjustable CCT High CRI>95 LED Strip 24V

led strip 24v cct

cct high cri led strip | SMD3528 120LEDsm Dual Color LED Strip Adjustable CCT High CRI>95 LED Strip 24V

cct high cri led strip

Specifications:

high quality warm and cool white 3528SMD dual white LED strip for advertising

Two colors for choise:

warm white and pure white; or warm white and cool white; or warm white and cold white; and so on

Beam angle: 120°

LED type: 3528SMD LED

LED quantity per meter:120pcs/M

Power:9.6W/meter

Standard length per reel: 5 meters (don’t include the length of wire)

Flexible PCB

PCB color: white

External power supplier

Voltage requirement: DC24V

Power output type: constant voltage

IP grade: IP20



Remarks:

The measured power values will be lower than the value on table above. Because it has internal resistance of the FPC.  The measured voltage values on the end of FPC will also lower than the one on the beginning side. It is also because of the resistance. When you install the strips, please use the series-parallel connection.

led strip cct | SMD3528 120LEDsm Dual Color LED Strip Adjustable CCT High CRI>95 LED Strip 24V

led strip cct

Remarks:

Each strip can only connect up to 5 meters. Not recommend more reels. Once above 5 meters, recommend series-parallel connection.



Installation notices:

1. Follow the wiring diagram to connect the strips.

2. Please do the installation strictly according the working parameter we offered.

3. Please keep the products under the antistatic shielding when installation. Don’t use the sharp tool to touch the products.

4. Product installation surface must be smooth, clean. Or else product will fall off.

5. 3M double glue is on the back of the product. Tear off the protection paper then install the product to anywhere you need.

6. Please make sure your operation reliability to ensure the life span of the light. Please don’t over-bend or over- fold the strips toavoid to damage the LED.

Environmental requirements:

Working temperature: -20~40 ℃

Storage temperature: -20~80 ℃

Working humidity: 30%~85%

Storage humidity: 10%~90%

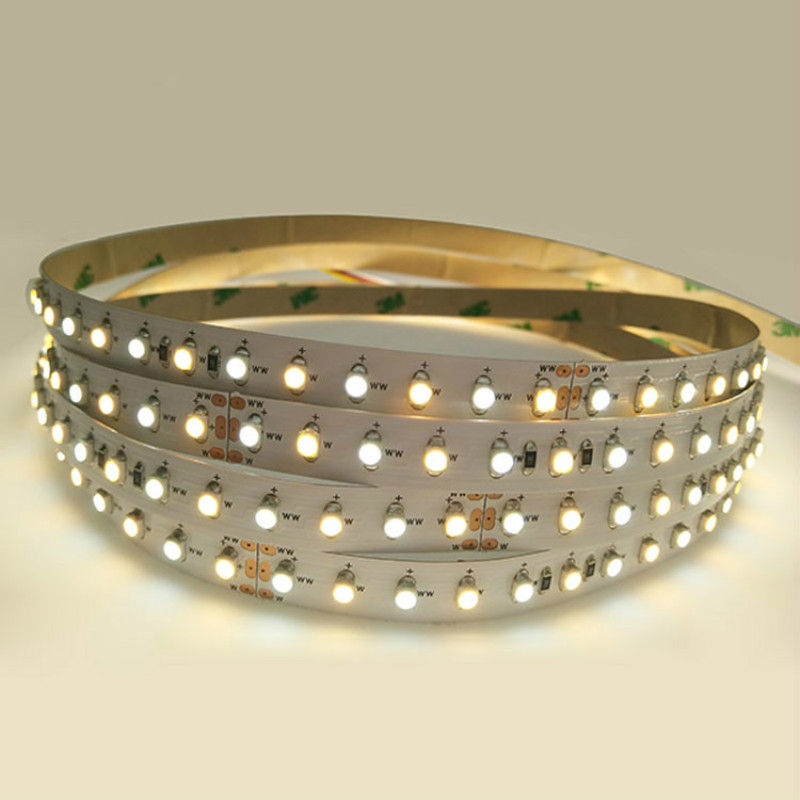

CCT led strip | SMD3528 120LEDsm Dual Color LED Strip Adjustable CCT High CRI>95 LED Strip 24V

CCT led strip

Adjustable CCT led strip | SMD3528 120LEDsm Dual Color LED Strip Adjustable CCT High CRI>95 LED Strip 24V

Adjustable CCT led strip

Applications:

Energy saving programs

Sustainable energy

Landscape lighting

Display case adornment

Artwork lighting

Commercial lighting

Museum lighting/General lighting

Amusement park adornment

Text symbols lighting

Ad decoration

Bar atmosphere

Signal sign backlight

Archway, canopy and bridge edge lighting

Auditorium walkway lighting
