Top Quality RGB SK6812 5v Digital Led strip, 5050 5M 300LEDs Individually Addressable rgb led strips

Item: SK6812 5v Digital Led strip

LED Qty: 60leds/m

IP Grade: IP20/IP65/IP68 Optical

Warranty: 3 Years

Description

Top Quality RGB SK6812 5v Digital Led strip, 5050 5M 300LEDs Individually Addressable rgb led strips

Welcome your visit, Shenzhen Lindeng Lighting Technology Co., Ltd. is China’s leading LED decoration lighting products and service providers! Founded in 2008, the company has rich industry experience. At the same time, relevant products have passed the eu CE, ROHS and other certification, become many famous brands decoration lighting designated suppliers!
5v Digital Led strip

5v Digital Led strip

product presentationRGB LED strip light
TypeLL-002-5050-605VCrgb
LED Quantity60 Leds/m
Color temperatureBuilt-in IC RGB
Size5000*10*2(mm)
Level of protection(IP)IP20/IP65/IP67/IP68
Contains the number of IC60 Pce
PCB ColorWhite PCB
CertificationCE/RHOS
Warranty2 years
Digital Led strip

Digital Led strip

Specifications:

Input voltage: DC5V

Power: 0.3W per led

Q’ty of LED: 30/60/144 leds/meter, 1Leds/Cut

IC Type: SK6812 IC

Q’ty of IC: 30/60/144IC/meter (1 IC drives 1 led chip)

Pixels: 30/60/144 PixelL/meter

Grey scale: 256

Bits/color: 8-bits/color



FPCB SIZE:

30leds/m—-Width: 5mm—3535 SIZE leds

60leds/m—-Width: 4mm—3535 SIZE leds

60leds/m—-Width: 5mm—5050 SIZE leds

144leds/m—Width: 7.2mm—3535 SIZE leds



PCB color: White PCB

Protection rate: Non-Waterproof IP30

Colors: Full color RGB, dream color changing

Cuttable: Every 1LEDs cuttabl



Narrow led strip sk6812:

4mm width 3535 RGB

5mm width 5050 RGB

5mm width 5050 RGBW/RGBWW/RGBNW

5mm width 5050 WWA

SK6812 5v Digital Led strip

SK6812 5v Digital Led strip

SK6812 Led strip light

SK6812 Led strip light

SK6812 5050 addressable rgb led strip SMD5050 LED Chip

Control IC included,supporting numerous Color-change effects;Pcontrol by SD controller,Arduino,DMX512,Artnet 1M per roll,

Customer’s size available also.The non-waterproof version strip attached white color 3M tape on back side of PCB but the waterproof.

SK6812 Led strip

SK6812 Led strip

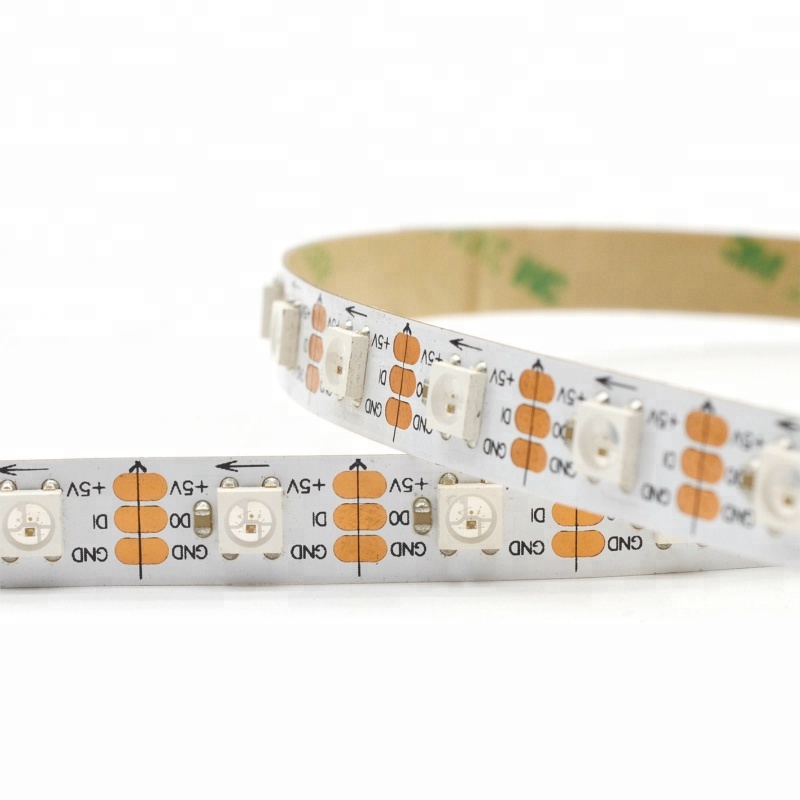

 *Individually Addressable
Using a programmable controller , you can program every led just as you like. Every one has its own IC chip.
One IC controlls one led.The chip is built in led.
*Bright
HURT YOUR EYES BRIGHT.
*Cuttable
Every led can be cut off,led strip still working after it is cut. Cut it to the length you just need.
 *Adhesive
They(IP30 ,IP65) has 3M adhensive tape on the back.You can paste it on the bookcase, TV, wine cabinet, ceiling,
window still easily .IP67 has NO adhesive on its back.
 *Colorful
Red ,Green, Blue .Dream full color. curtain-up/ flow water/raindrop flash and so on hundreds of lighting effect,
you can also edit animation effect by Coreldraw/Flash/LedEdit software
*Long life
Life span:more than 50000hrs
