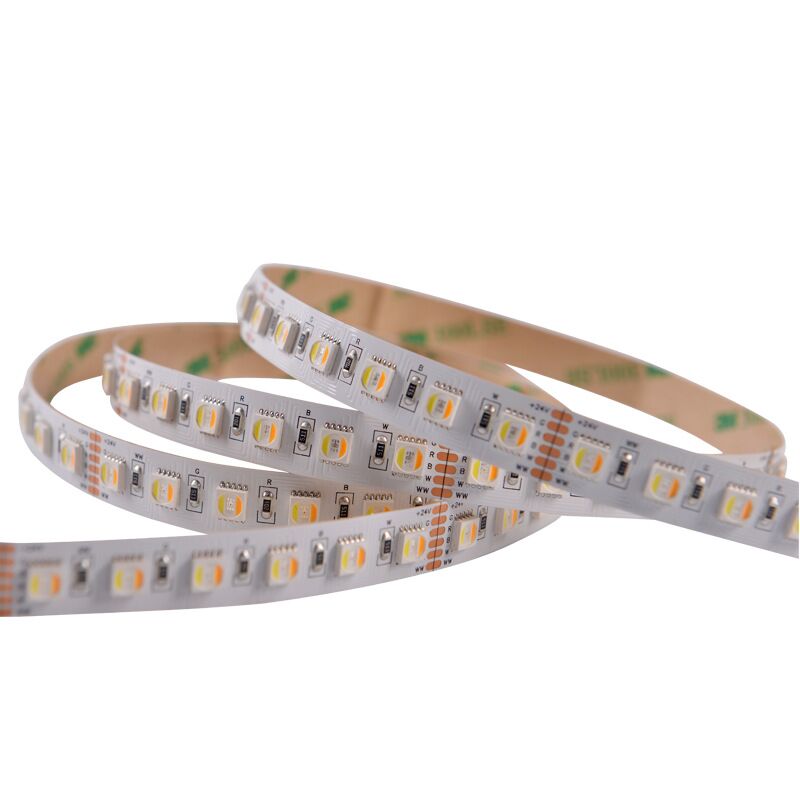

Wholesale RGBWW DC24V Full Color SMD 5050 RGB CCT 5 Colors in 1 LED Strip


Item: RGBWW LED Strip

LED Qty: 60leds/84leds/96leds

LED Chip: 5-in-1 RGBWW

Voltage: DC24V


NEW Arrival RGBWW DC24V Full Color SMD 5050 RGB CCT 5 Colors in 1 LED Strip

Product Details
Model: 5050RGBCCT 5 in 1 chip

Lamp Beads Quantity: 96 leds/M

Lamp Beads Brightness: 30-35LM

Input voltage: 24V

Chip: Refond chip, pure gold wire copper bracket

Line Material: 2OZ FPCB

Circuit board: 2OZ High quality FPCB plate pressure drop less heat dissipation performance is good

Power: 36W/m

Luminescent color:  white +RGB+ warm white (colorful transformation)
Light decay: 2% (5000h)
Luminescent angle: 120°

Protection class: IP20 not waterproof, IP65 drip glue waterproof, IP65 nano waterproof, IP67 silicone casing Waterproof, IP68 glue waterproof
Specification Size: 12*5000mm (length can be customized on request)
Packaging: Black/white plastic coil, aluminum foil bag anti-static bag packaging

Service life: 50,000 hours

Warranty: 2-3 years

Other:  can provide power supply, controller and other ancillary products (need to purchase separately)



Warning of  mixed color led strip:

1. Supply voltage of mixed color led strip lights is DC24V; never connect to other high voltage.

2. Never connect two wires directly in case of short circuit. RGBWW 4 in 1 mix color led strip

3. Lead wire should be connected correctly according to colors that connecting diagram offers.

4. Warranty of this product is 3 years, in this period we guarantee replacement or repairing with no charge, but exclude the artificial situation of damaged or overload working.







RGBWW led strip 24V

RGBWW led strip 24V

Applications of rgbw strip:

1) Indoor and outdoor decorative lighting and backlighting

2) Emergency hallway lighting

3) Auditorium walkway lighting

4) Outdoor illuminated signs and advertisements

This 5-color RGB+CCT LED Strip is the most versatile LED strip that we have in our product range.

These LED strips contain LEDs with the RGB, Warm White and White colors all contained in one LED!
This ensures that the resulting light output is smooth and uniform, no matter which color you choose.
You can use the RGB colors to create any color that you want, and you can combine the white and warm white colors to create any shade of white that you want, from warm white  up to cold white (6500K).
The brightness can also be controlled using an RGBCCT controller.
This LED strip gives you full control over your lighting!
