WS2812B SK6812 APA104 LC8812B 5050 RGB Addressable Color Smart LED Strip Light DC5V

Item: Addressable LED Strip

IC Type: SK6812/WS2812B/APA104/LC8812B

Voltage: DC5V

LED Qty.: 30leds/60leds/96leds/144leds

Description

WS2812B SK6812 APA104 LC8812B 5050 RGB Addressable Color Smart LED Strip

LC8812B is a external controlled intelligent LED with control circuit and light emitting circuit in one 5050 components. Each LED is a pixel, The pixel contains the intelligent digital interface data latch signal shaping amplifier driving circuit, power supply voltage regulator circuit, built-in constant current circuit, high precision RC oscillator, and the output driver adopts patented PWM technology, which Effectively ensure that the color of each pixel is consistent. The data protocol being used is unipolar NRZ communication mode. After the pixel power-on reset, the DIN port receive data from controller, When the first 24-bit data is extracted by the first pixel and sent to Data latch which inside the pixel, The remaining data is processed by the internal shaping circuit, The remaining data is shaped and amplified by the internal shaping processing circuit, and then the output is forwarded to the next cascaded pixel through the DO port. The Data transmission through each pixel, the signal will reduce 24bit, The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission, only limited by signal transmission speed. The LED has allow driving voltage, environmental protection and energy saving, high brightness, scattering angle, good consistency, low power, and long lifespan.  The control circuit is integrated in the LED, which make Components smaller and more easier to install.

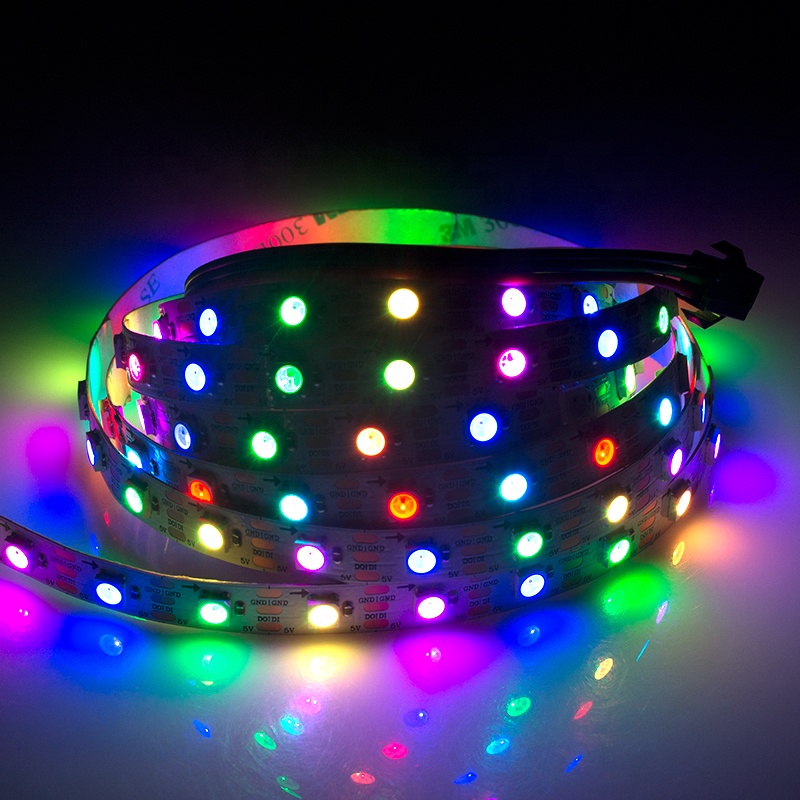

LC8812 LED Strip

LC8812 LED Strip

LC8812B LED Strip

LC8812B LED Strip

SK6812 5050 LED Strip

SK6812 5050 LED Strip

Addressable LED Strip

Addressable LED Strip

WS2812B 5050 LED Strip

WS2812B 5050 LED Strip

Smart LED Strip

Smart LED Strip

Packaging & Shipping

5m per roll ,One roll in one Package bag

Payment: T/T ,Western Union or Paypal are welcomed

Production lead time for 5000M:5-7days

Sample can be delivered in 3days

Shipping freight are quoted under your requests

Shipping port: Shenzhen, Mainland China

Discounts are offered based on order quantities

Our Services

1) ODM+OEM Service offered
2) Overseas Agency is opened
3) Provide full support in lighting solutions for customer request.
4) More quantity, more discount



Company Information

We are a high-tech LED enterprise committed to the R&D, production, sales and service of LED lighting strips and digital pixel LED chips. The company is headquartered in Shenzhen, China. It has R&D centers, laboratories, manufacturing centers, product quality monitoring centers, warehouse logistics centers.

As technology development, people pay more and more attention to the intelligence of LED and the variability of color. Our company has made great efforts to design addressable LED smart digital leds and applied for a variety of technical patents. This kind of leds can synthesize 16777216 colors, which can achieve independent color of each pixel. At present, our company independently develops digital LEDs, as the lc8808,lc8822,lc8812 leds.

We have our engineer team, develop all type the new products and design products as customers` demands,and solve technical problems.

With 2 sets of high speed SMT machine, make sure faster lead time,

Dust-free workshop for high quality LED strip production, to make sure the led strip are high quality with strict quality control.
