96leds/m DMX addressable Dream Color WS2812 LED Strip IP20 IP65 IP67 IP68

Item: WS2812 LED Strip

Voltage: DC5V

Power: 28.8w/m

LED Quantity: 96leds/m

Description

96leds/m DMX addressable Dream Color WS2812 LED Strip IP20 IP65 IP67 IP68

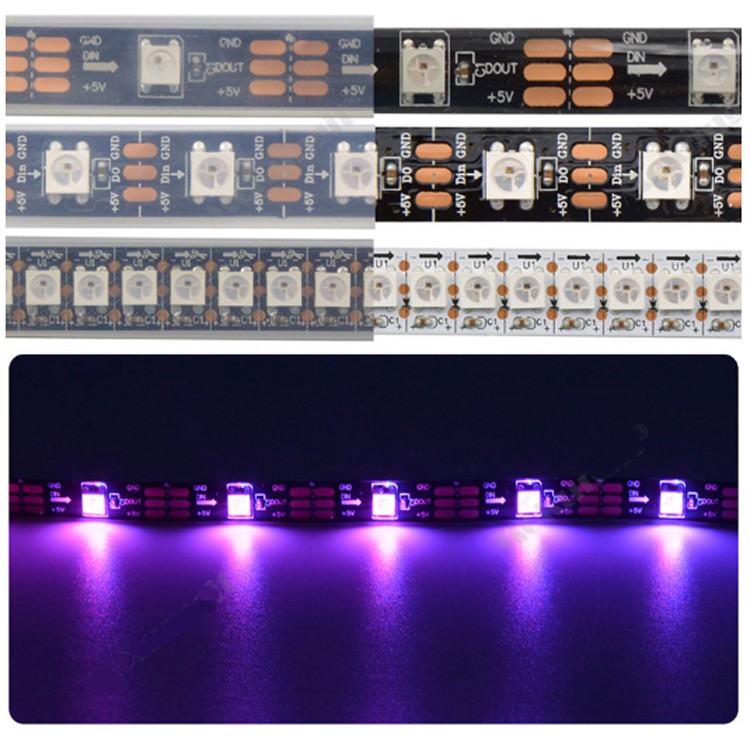

The addressable ws2812 LED strip consist of 96pcs Super Brightness SMD5050 RGB LED per meter,IC Built in LED,each LED as one pixel. Adapt white PCB/black Flexible PCB in width 10mm, IP20,IP65 IP66,IP68 Waterproof Grade are available. 3PIN JST SM connector(non-waterproof)soldered at each end of strip for DATA Transimit, extra 2 single wire for Safety DC5V voltage input.
Support WIFI Controller,RF Controller, SD controller,DMX decorder,Artnet,Arduino etc on..

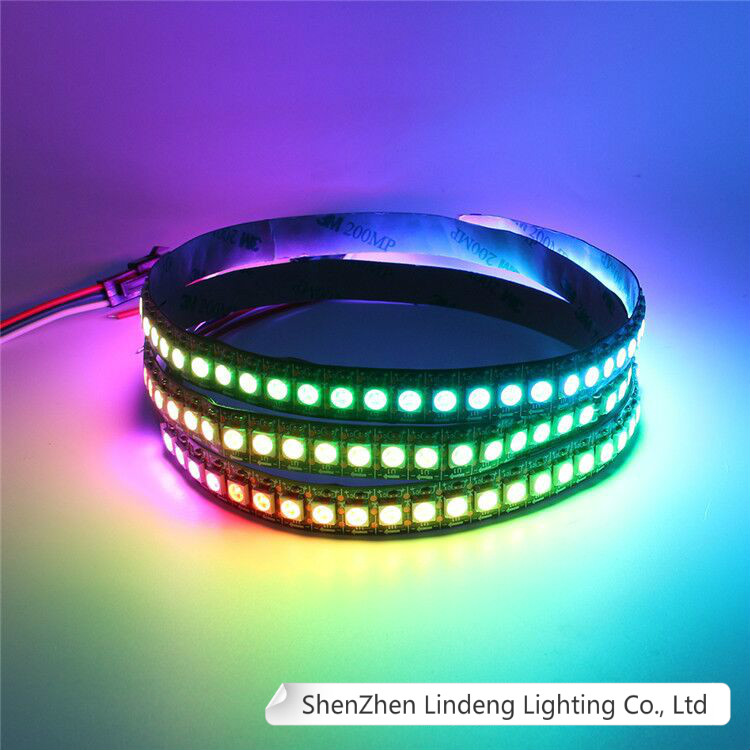

full color ws2812 96leds

full color ws2812 96leds

ws2812 96 led strip

ws2812 96 led strip

ws2812 LED Light Strip

ws2812 LED Light Strip

ws2812 LED Strip Light

ws2812 LED Strip Light

ws2812 LED Strip

ws2812 LED Strip

SMD 5050 Addressable RGB LED Strip

Model No. Voltage LED Qty.(led/m) Related Watt. PCB Width(mm) PCB Color IC Cutting Unit Standard Length
LL-S3-5RGB DC 5V 30 LEDs/m 7.2w/m 10mm White/Black Built in WS2812 1 LED 5m/roll
LL-S6-5RGB 60 LEDs/m 14.4w/m 10mm 5m/roll
LL-S9-5RGB 96 LEDs/m 21.6w/m 10mm 5m/roll
LL-S14-5RGB 144 LEDs/m 34.56w/m 12mm 1m/roll



ws2812 strip

ws2812 strip

ws2812 strips

ws2812 strips

Features:

1. Control principle: IC is built right into LED. An IC controls one LED and they form a group of loop. the controller is controlled by the controlling circuit of IC inside the FPCB, so as to control the LED strip changes with different effects;

2. 1 LED/Unit can be cut

3. R,G,B and IC are encapsulated in 4PIN or 8 PIN LED.

4.IC is built-in LED. One LED is one pixel. Every single LED is addressable. It is programmable.

4. It can achieve single pixel control, point by point scanning, reach magic RGB chase, horse racing, gradual change and other effects.

5. Data transmission speed can reach 800Kbps

6. Uniform lighting, low failure rate and very cost effective.

7. Environmental safety and Energy Saving: no pollution, small power consumption

8. Light and thin: suitable for installation in the narrow space inside

Black ws2812 96leds IP68

Black ws2812 96leds IP68

Black WS2812

Black WS2812

Dream Color LED Strip

Dream Color LED Strip
