Description

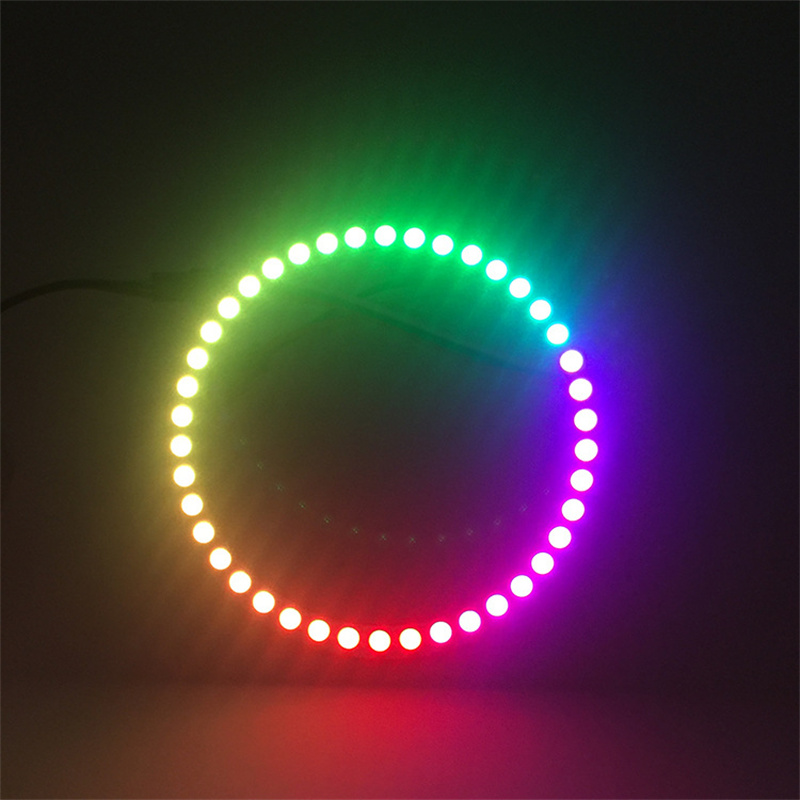

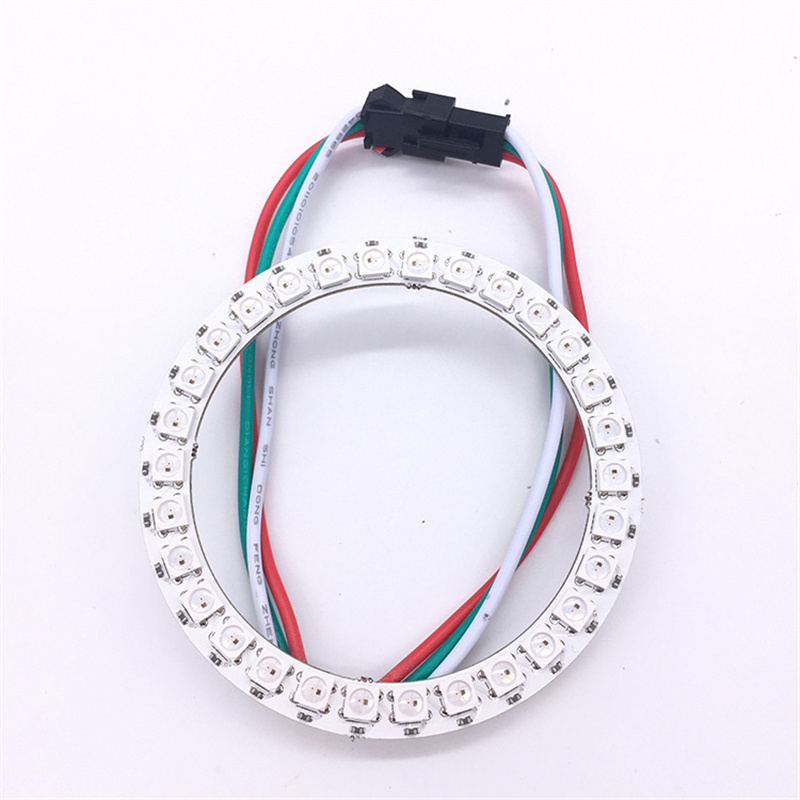

Full Color LED Ring DMX DC5V WS2812B WS2812 Addressable Round Ring Pixel LED Light Strip
Full Color LED Ring are 5V Voltage, WS2812B LED Chip with build-in IC, can creat Gorgeous color, it a good choice to be used to decorate dress , festival decoration, hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
PCB color can be white / black
Interface: VCC,GND,DIN,DOUT
Platform: rduino Microcontroller with Arduino library
Led Quantities and ring size can be customize, 8LED/16LED/24LED/35LED/45LED, etc on.
Specification
| Model | WS2812B-1leds | 8leds | 12leds | 16leds | 24leds | 32leds |
| Voltage | DC5V | |||||
| Power | 0.3W | 2.4W | 3.6W | 4.8W | 7.2W | 9.6W |
| Led Color | RGB,also can use the controller to reach many knids of effect | |||||
| Inner Diameter | / | 16mm | 36mm | 56mm | 76mm | 96mm |
| Outer Diameter | 12mm | 32mm | 52mm | 72mm | 92mm | 112mm |
| Waterproof | IP20,no waterproof | |||||
| Installation | Double outlet-100mm,use the screw to installation. | |||||
